SMATIPC | SKU: SPW-000045

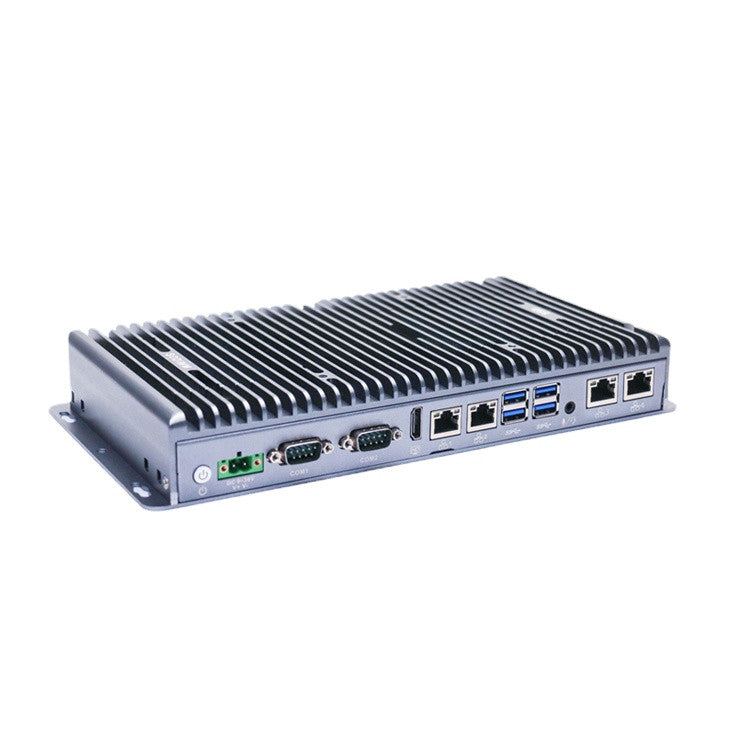

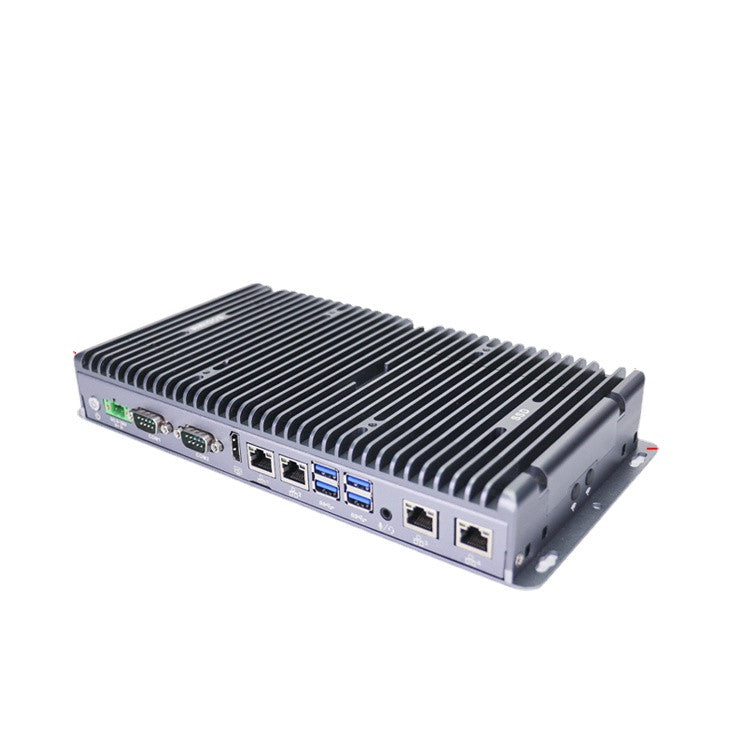

Industrial PC - SPW-3046 - i5-8265U

Name: Industrial PC - SPW-3046 - i5-8265U
Brand: SMATIPC
SKU: SPW-000045
Price: 715.00 EUR
Availability: InStock

€715,00 HT

Shipping calculated at checkout.

Industrial PC - SPW-3046 - i5-8265U is backordered and will ship as soon as it is back in stock.

Support information

We provide quality customer service to ensure your satisfaction. For any questions or assistance, please contact us by email at contact@sparwan.com or by telephone at 02 51 99 13 03.

delivery and shipping

If the product you have selected is in stock then you will receive it within 2 to 3 working days.

If the product you are interested in is available to order, the default delivery time is 2 to 3 weeks, unless otherwise specified on the product sheet.

Description

Power and fanless

The SPW-3046 is uncompromising. Its compact, fanless design doesn’t compromise on power.

Wide power supply range

It has a wide power supply range: 9 to 36VDC

Harsh environments

Its fanless design, its hardened architecture, its compact and efficient heat dissipation casing allow the SPW-3046 to operate in the most difficult environments.

Features

Material

Aluminum alloy chassis

CPU

Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache);

Available in Celeron or I7, contact us.

CPU Architecture

Skylake-U

RAM

Support 1*DDR4 2133/2400 SODIMM memory slot, Max. Support 32GB

Storage

1 x M.2 2280 slot, 1*2.5” HDD, Support RAID 0/1

BIOS

AMI BIOS EFI

Display chip

Intel UHD Graphics

Display Port

1*VGA, 1*HD(support synchronous and asynchronous dual display)

Before I/O

2 * USB2.0,

2 * COM,

1 * VGA

Rear I/O

4*Intel 1000M LAN,

4*USB3.0,

1 * HD,

1*Audio(support mic and speaker at the same time)

2*COM(COM1,COM2 RS232/RS422/RS485 optional),

1*2pin power phoenix connector,

1 * Power Switch

Expansion slot

Support 1 * M.2 m-key 2280 slot (support SATA protocol)

Support 1*MINI PCIE Slot(WIFI/3G/4G optional; Choose one of the three), Built-in SIM Slot

Network

4 * Intel i211-AT 1000M Lan

Other Function

TPM2.0 security encryption,

Automatic power on when there is electricity,

The start schedule,

Wake on LAN,

PXE boot,

Watchdog (Level 0~255)

(Standard version does not define these functions)

Food

DC 9V~36V wide voltage input

Support positive pole and negative electrode, connect reverse protection;

Operating temperature

-20℃~+60℃(Industrial SSD), Surface airflow

Working humidity

5% ~ 95% non-condensing

Dimension

280×143×40 mm

Application

Industrial automation, medical, data acquisition, motion control, vehicle applications, etc.
