Milesight  |  SKU: SPW-500019

ToF Laser Distance Sensor - EM400-TLD-868M

• Transmission LoRaWAN : Fréquences CN470/IN865/EU868/US915, puissance 16-20 dBm, sensibilité -137 dBm, mode OTAA/ABP Classe A.

• Mesure de distance : Plage de détection 2 à 350 cm, précision ±2 cm, résolution 1 mm, champ de vision de 27°.

• Capteur de température et inclinaison : Température de -40°C à 125°C, résolution 0.1°C, détection de l'état (normal/inclinaison).

• Alimentation : 2 piles ER26500 (9000 mAh), autonomie ≥10 ans.

• Caractéristiques physiques : Dimensions 118 × 65 × 30 mm, protection IP67, matériau ABS + PC (ignifuge), montage sur surfaces planes avec vis.

€104,90
Shipping calculated at checkout.

Need expert advice or a quote?

Contact our sales team: 02 51 99 13 03


ToF Laser Distance Sensor - EM400-TLD-868M is backordered and will ship as soon as it is back in stock.

Délai produit hors stock

Le délai moyen quand le produit n'est pas en stock est de 2 à 3 semaines. Vous pouvez nous contacter pour confirmer celui-ci

Support information

We provide quality customer service to ensure your satisfaction. For any questions or assistance, please contact us by email at contact@sparwan.com or by telephone at 02 51 99 13 03.

delivery and shipping

If the product you have selected is in stock then you will receive it within 2 to 3 working days.

If the product you are interested in is available to order, the default delivery time is 2 to 3 weeks, unless otherwise specified on the product sheet.

Description

ToF sensor

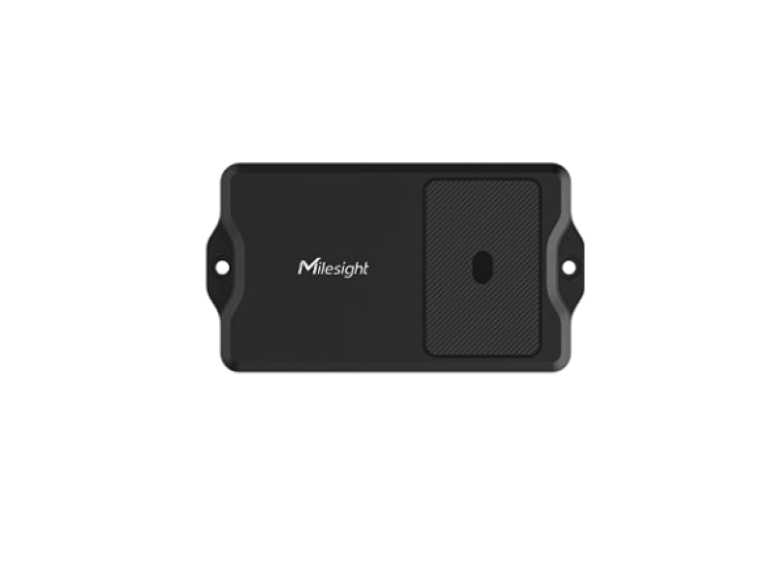

The EM400-TLD sensor is a LoRaWAN ToF (Time of Flight) distance sensor, which is mainly used to detect a filling level and the position of a lid on a container or trash can.

With a suitable FOV of 27° angle, it has almost no dead angle when installed on trash cans or small containers.

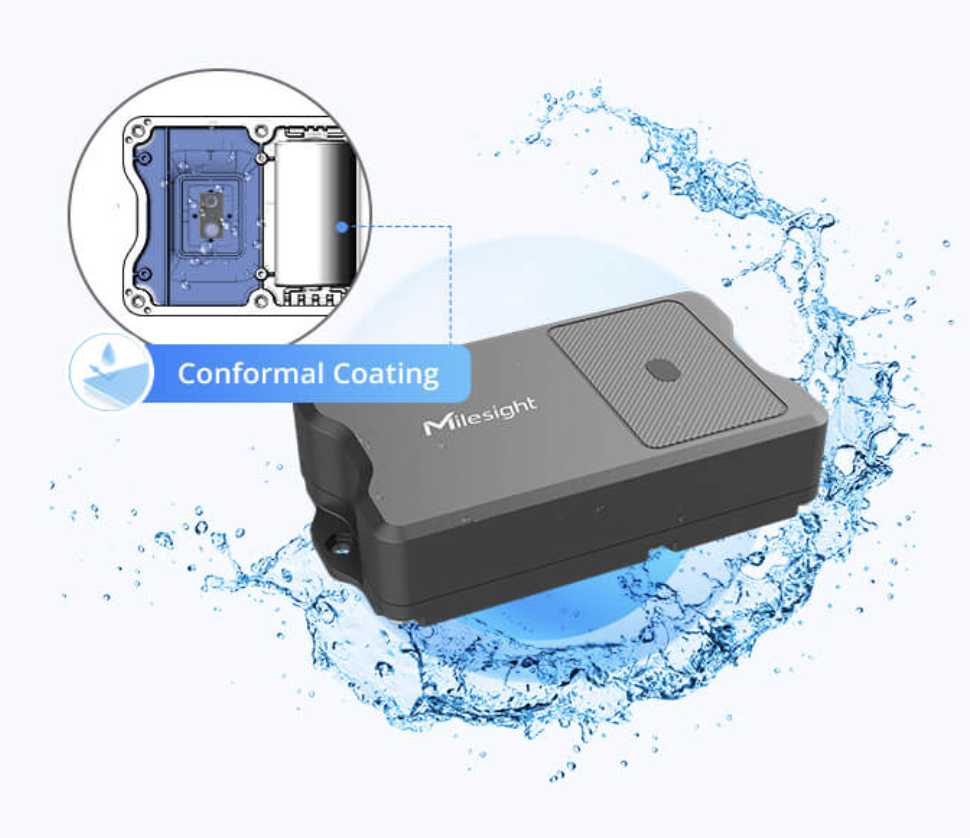

Integrated temperature sensor and IP67 standard

The built-in temperature sensor allows it to monitor whether the containers catch fire. With an IP67 waterproof rating and an internal moisture-proof coating, it is suitable for outdoor applications.

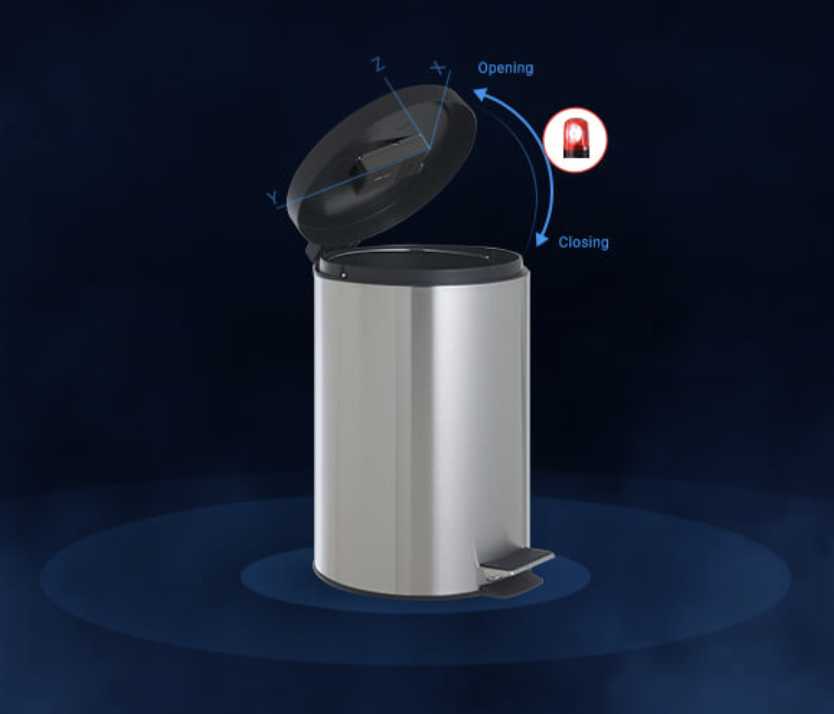

Opening detection

In addition, the EM400-TLD sensor is equipped with a 3-axis accelerometer to detect the opening status of the container lid.

Remote data management

Compatible with Milesight LoRaWAN gateways and the Milesight IoT Cloud solution, users can know the status and fullness of containers in real time and manage them efficiently and remotely.

Specifications

  • Application
    SMART CITY
