Description
Description
Intel® Core™ i7-8565U, 4 cores, 8 threads, only 15W TDP

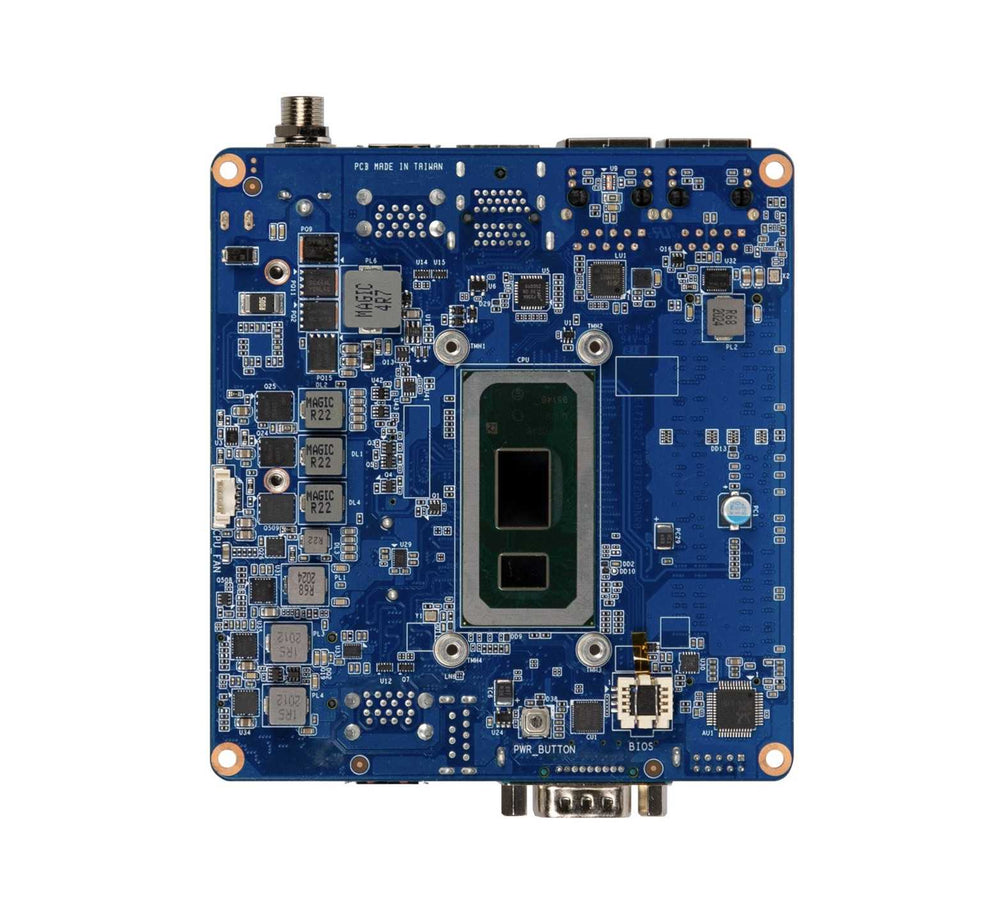

The QBi-8565A industrial motherboard is a compact, high-performance solution designed for demanding embedded applications. Featuring an Intel® Core™ i7-8565U processor, this card offers exceptional processing power thanks to its 4 cores and 8 threads , reaching a maximum frequency of 4.6 GHz. With a TDP of just 15W, it combines energy efficiency and high performance, ideal for industrial environments requiring consistent reliability.
Powerful display and networking
When it comes to connectivity, the QBi-8565A is equipped with two Gigabit Ethernet ports , providing fast and stable network connectivity. These ports are based on the Intel® I219V and Realtek® RTL8111HS chipsets, providing redundancy and increased performance for mission-critical applications. The card also supports three independent video outputs thanks to the integration of the Intel® UHD Graphics 620 graphics card, with two HDMI ports and one eDP port , allowing maximum resolutions of 4096x2304.
Supports 64GB RAM, SATA SSD RAID & WiFi/BT
The QBi-8565A motherboard stands out for its expansion and storage capacity. It has two DDR4 SO-DIMM slots supporting up to 64 GB of memory , ensuring smooth and fast multitasking performance. For storage, it offers a SATA 6Gb/s port with RAID 0/1 support , as well as an M.2 M-Key slot for PCIe x4 or SATA SSD drives. Additionally, an M.2 E-Key slot allows the addition of WiFi/BT modules, providing additional flexibility for various network configurations.
Top connectivity!

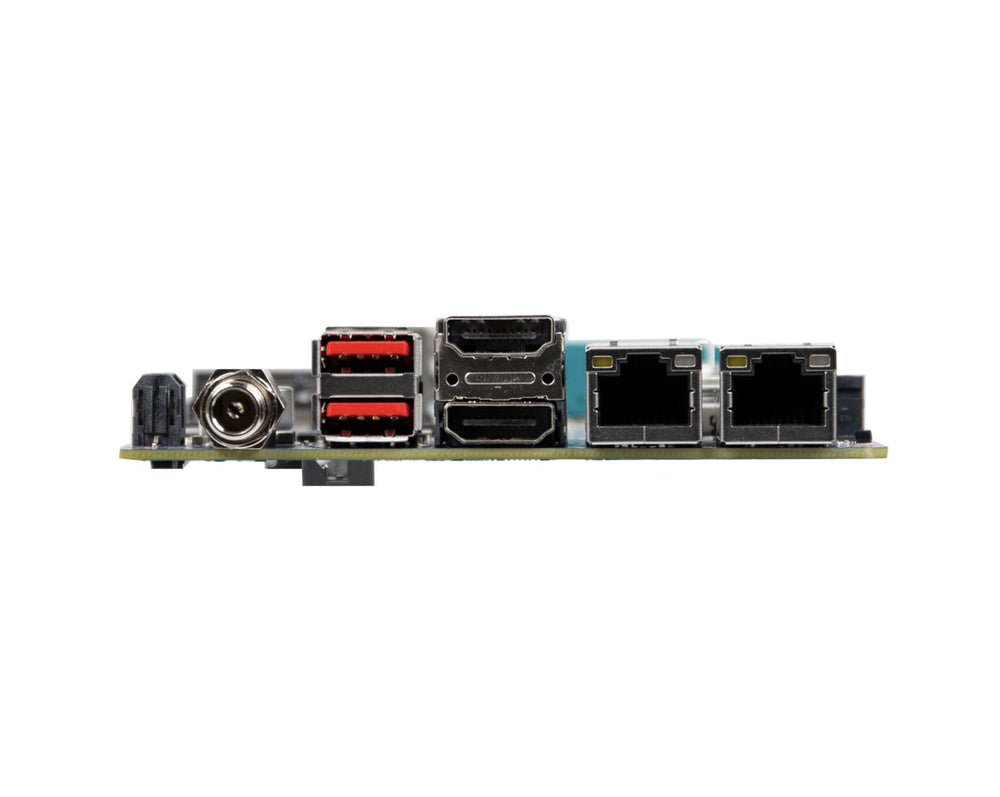

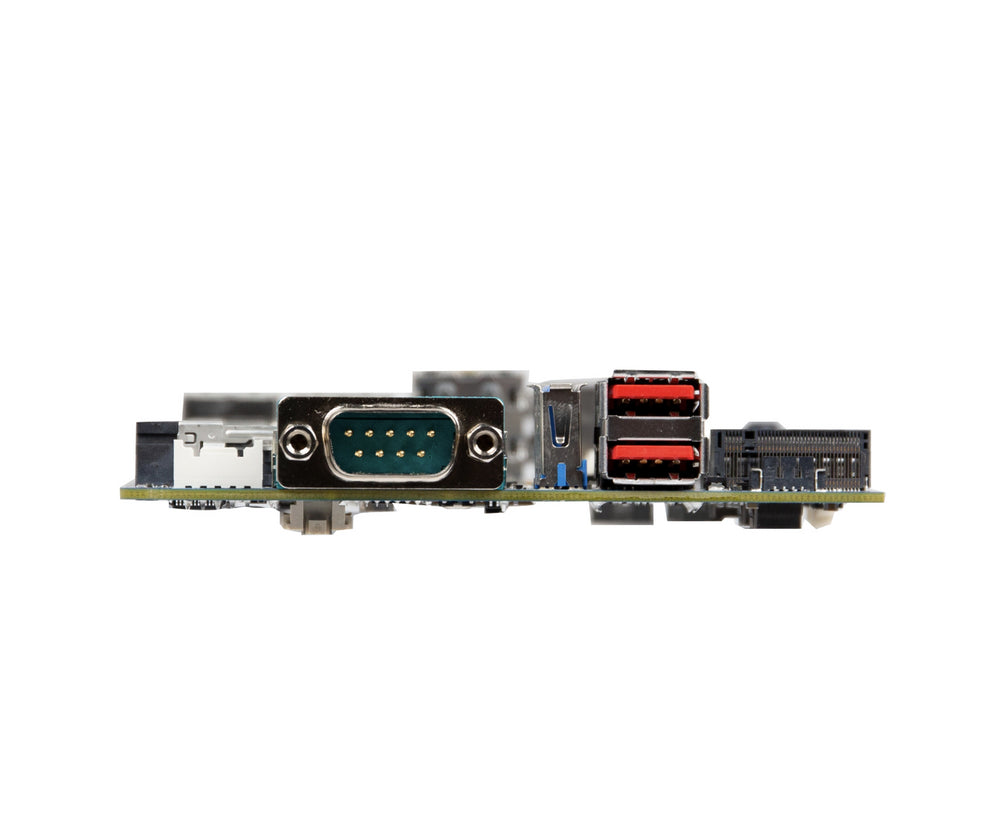

Designed for industrial use, the QBi-8565A features a wide range of internal and external features. It includes internal connectors for power, a CPU fan, front and audio panels, and vertical USB 2.0 and USB 3.2 Gen 1 connectors. On the front, it offers two USB 3.2 Gen 2x1 ports, a power button and a configurable COM port. On the back, there are two HDMI ports , two RJ45 LAN ports , two USB 3.2 Gen 2x1 ports and a screw DC connector . Compatible with Windows 10 x64, it is suitable for a wide range of industrial applications, thanks to its robustness and its operating capabilities in varied environmental conditions.
Compact format and increased reliability for industrial integration
With its compact 105mm x 110mm size and flexible mounting options, the QBi-8565A motherboard is easy to integrate into different industrial systems. It comes with the necessary accessories for quick installation , including a SATA power cable. For optimal heat dissipation, optional heat sink kits and TPM 2.0 modules are available. This industrial motherboard therefore offers a complete and versatile solution for professionals looking for reliable performance and great flexibility for their embedded applications.
