QBi-8565A Core i7 industrial motherboard - GIGAIPC
Intel® Core™ i7-8565U, 4 cores, 8 threads, only 15W TDP

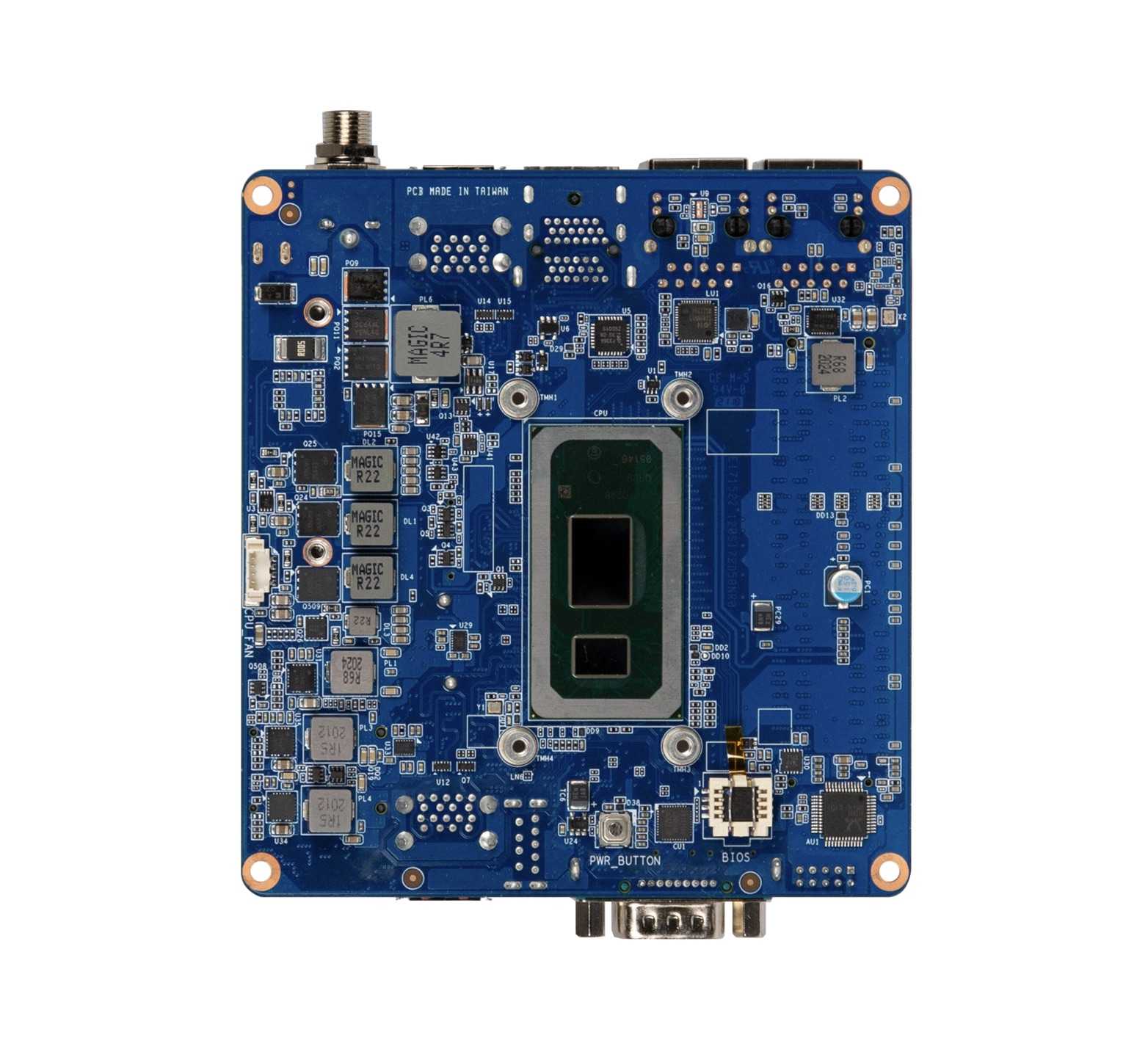

The QBi-8565A industrial motherboard is a compact and high-performance solution designed for demanding embedded applications. Equipped with an Intel® Core™ i7-8565U processor, this board offers exceptional processing power with its 4 cores and 8 threads, reaching a maximum frequency of 4.6 GHz. With a TDP of only 15W, it combines energy efficiency and high performance, ideal for industrial environments requiring constant reliability.
High-performance display and network
In terms of connectivity, the QBi-8565A is equipped with two Gigabit Ethernet ports, offering fast and stable network connectivity. These ports are based on Intel® I219V and Realtek® RTL8111HS chipsets, ensuring redundancy and enhanced performance for critical applications. The board also supports three independent video outputs thanks to the integration of the Intel® UHD Graphics 620 graphics card, with two HDMI ports and one eDP port, allowing maximum resolutions of 4096x2304.
Support for 64GB RAM, SATA RAID SSD & WiFi/BT

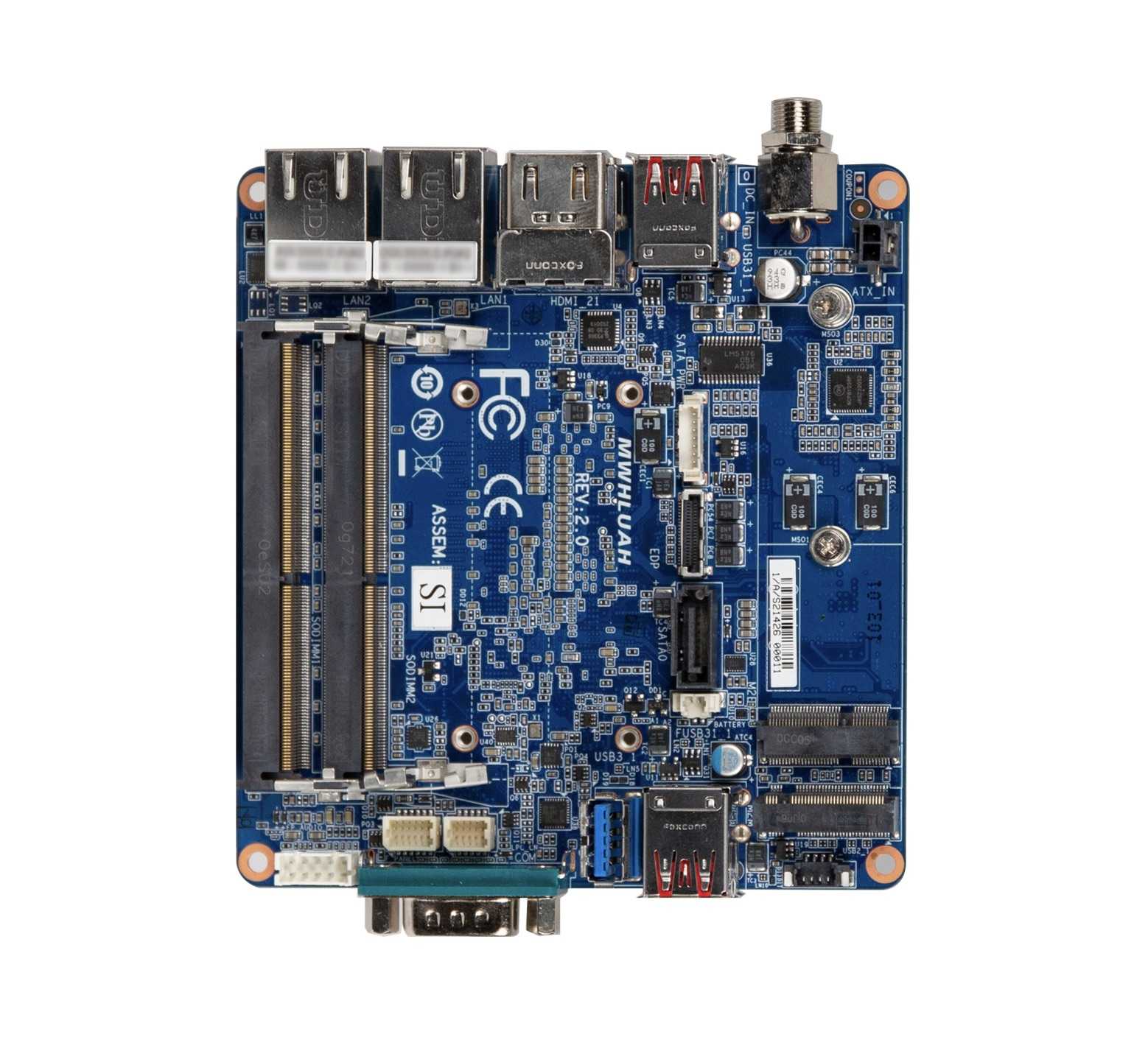

The QBi-8565A motherboard stands out for its expansion and storage capabilities. It has two DDR4 SO-DIMM slots supporting up to 64 GB of memory, ensuring smooth and fast multitasking performance. For storage, it offers a SATA 6Gb/s port with RAID 0/1 support, as well as an M.2 M-Key slot for PCIe x4 or SATA SSDs. In addition, an M.2 E-Key slot allows the addition of WiFi/BT modules, offering additional flexibility for various network configurations.
Top-notch connectivity!

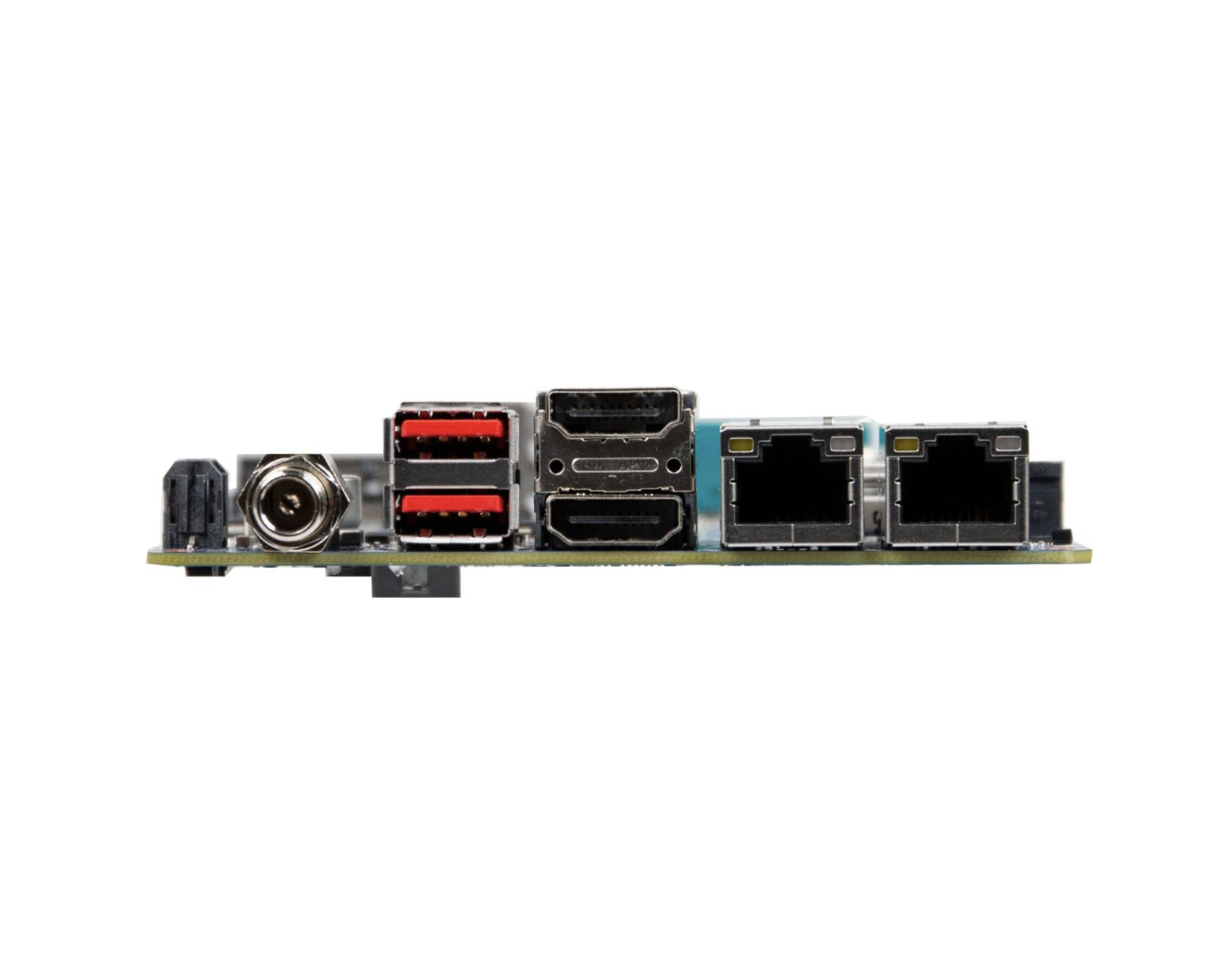

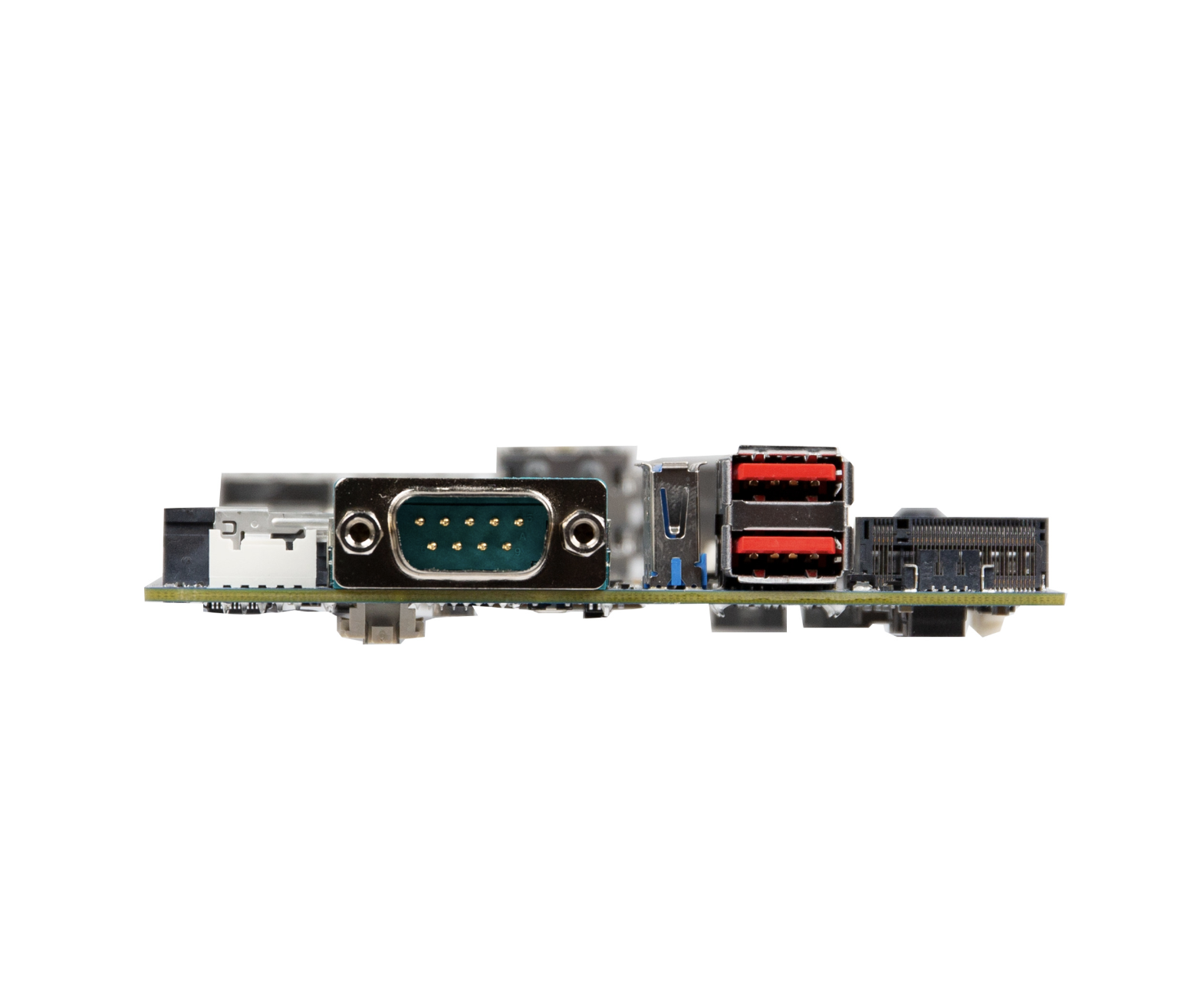

Designed for industrial use, the QBi-8565A features an extensive range of internal and external characteristics. It includes internal connectors for power, a CPU fan, front and audio panels, as well as vertical USB 2.0 and USB 3.2 Gen 1 connectors. On the front, it offers two USB 3.2 Gen 2x1 ports, a power button, and a configurable COM port. On the rear, there are two HDMI ports, two RJ45 LAN ports, two USB 3.2 Gen 2x1 ports, and a screw-type DC connector. Compatible with Windows 10 x64, it is suitable for a wide range of industrial applications, thanks to its robustness and operating capabilities in varied environmental conditions.
Compact form factor and increased reliability for industrial integration
With its compact form factor of 105 mm x 110 mm and flexible mounting options, the QBi-8565A motherboard is easy to integrate into various industrial systems. It comes with the necessary accessories for quick installation, including a SATA power cable. For optimal heat dissipation, heatsink kits and TPM 2.0 modules are available as options. This industrial motherboard thus offers a complete and versatile solution for professionals looking for reliable performance and great flexibility for their embedded applications.
