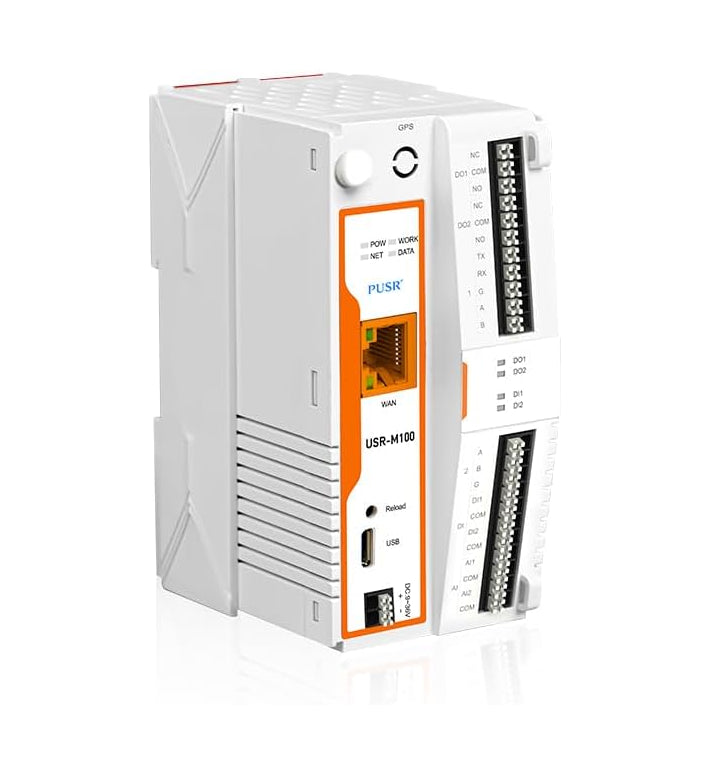

PUSR USR-M100 I/O gateway
Description
Description
High Performance and Connectivity
The product uses a 32-bit Arm Cortex-M7 SoC core with a frequency of up to 400 MHz, providing high processing performance.
It provides remote serial access over the Internet for industrial serial devices, making remote management easier.
Connectivity and Temperature Range
Featuring a 10/100 Mbps Ethernet port with Auto MDI/MDIX support, it ensures reliable connectivity.
Its wide industrial temperature range of -25°C to 75°C ensures stable operation in various environments.
Flexibility of Flow Rates and Operating Modes
The product offers flexible baud rate ranging from 0.6 to 230.4 Kbps, with support for various parity settings.
It offers a variety of versatile operation modes such as TCP Server, TCP Client, UDP, HTTP Client, and WebSocket Server.
Security and Support Protocols
It provides high security through certificate verification, SSL/TLS encryption for serial data transmission, and supports secure protocols such as HTTPS, TCPS, MQTTS.
The product supports multiple protocols, including Modbus RTU master, edge computing, Modbus gateway, MQTT gateway, as well as SNMP V1/V2c.
Configuration and Upgrade
It offers rich configuration with access via Windows tool and web browser, providing easy customization.
Firmware upgrade is easily accomplished via a web browser, Windows tool, or even remotely via PUSR.

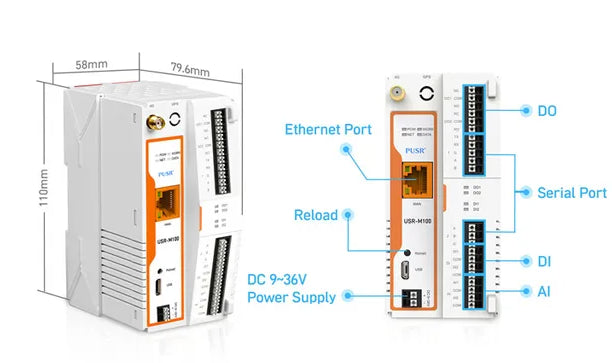

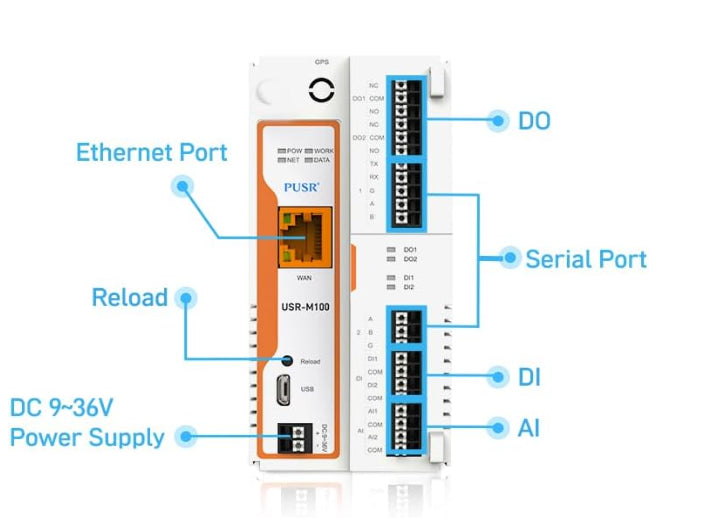

Embedded I/O and Serial Connectivity
Featuring onboard I/O for 2 analog inputs, 2 digital inputs, and 2 digital outputs, it provides flexibility in applications.
It has 2 serial ports, including 1 x RS232/485 and 1 x RS485, allowing extensive serial connectivity.
Cloud Support
It supports cloud via MQTT with various providers such as AWS IoT, Microsoft Azure, Thingsboard, Alibaba Cloud, and others.
Application cases
Industry
The USR-M100 finds application in industrial automation, providing robust connectivity for equipment and machines.
It is used in remote monitoring and control systems for manufacturing processes.
IoT (Internet of Things)
In the field of IoT, the USR-M100 is used to connect and collect data from sensors, smart devices and machines.
It is used in remote monitoring, energy management and environmental monitoring solutions.
Smart Manufacturing
In the context of smart manufacturing, this gateway is used to collect and analyze data from production equipment.
It facilitates the implementation of predictive maintenance and process optimization strategies.
Monitoring and Control
The USR-M100 is used in remote monitoring and control systems for critical infrastructure such as power grids, water facilities and transportation networks.
Smart Agriculture
In smart agriculture, it is used to monitor environmental conditions, automate irrigation and fertilization, and optimize crop management.
Transport and logistics
It is used in vehicle fleet tracking and management systems, providing real-time connectivity for performance monitoring and route management.
Energy management
In the field of energy management, it is used to monitor and control renewable energy generation equipment, smart power grids and building energy management systems.
Connected Health
It is used in telemedicine and remote patient monitoring applications, enabling the collection and secure transmission of health data.
