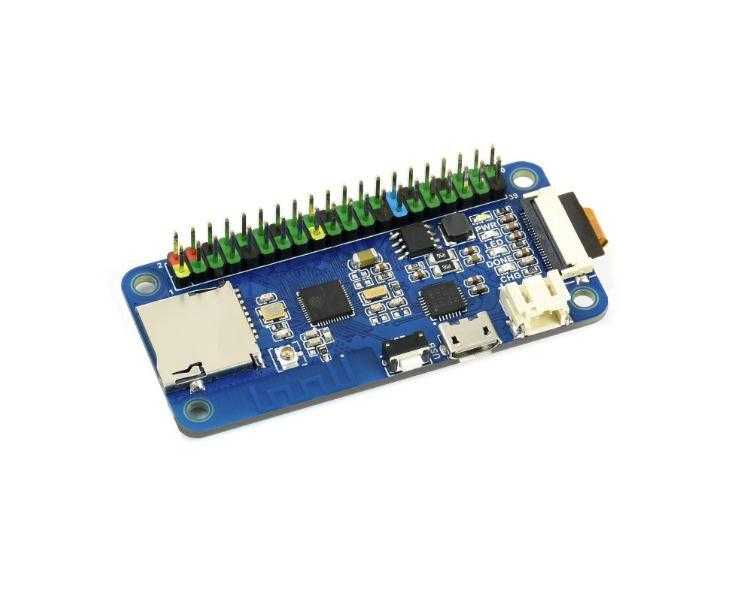

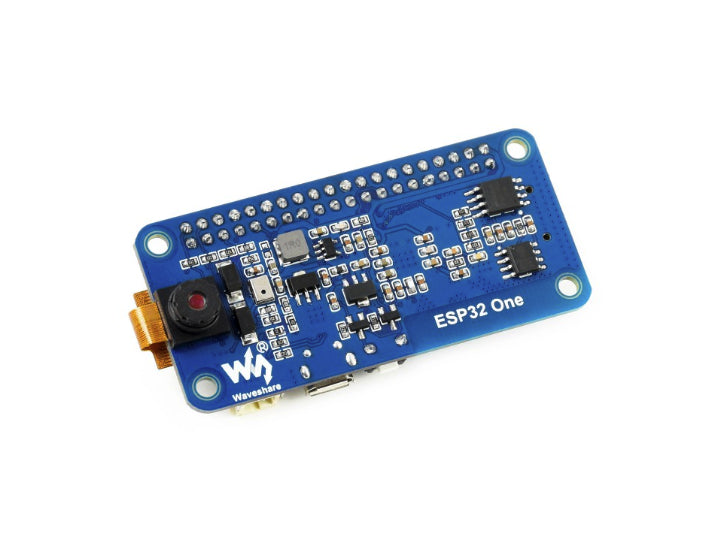

19186 - Mini Development Board with WiFi/Bluetooth, Camera - ESP32 One Kit - Waveshare
ESP32 One Kit Features with Camera (Optional)
WIFI 802.11b/g/n
Bluetooth 4.2, including traditional BR/EDR and low energy BLE
Xtensa LX6 240 MHz dual-core processor
CAMERA OV2640 (UXGA 1622×1200) (optional)
SRAM 520 KB + 8 MB
INPUT VOLTAGE 3.3V ~ 5V
CHARGING CURRENT 1A @ 5V
DIMENSIONS 65 mm × 30.5 mm
Dual-mode WiFi/Bluetooth communication
WiFi Or Bluetooth EDR Image Transmission
Image Recognition and Voice Processing (Camera Option)
Integrates an OV2640 2MP camera (optional) and a digital microphone
Compatible with the ESP-WHO framework, it is quick and easy to create applications such as facial recognition, voice alarm, etc.
Battery or USB powered
The battery can also be charged via a USB connection, no additional charger required
Raspberry Pi HAT Compatibility
Free Expansion Through Standard 40PIN GPIO Header
Documents
Arduino ESP32 Support Reference
ESP32 Arduino Core Documentation
