925027 - White 5.8 dBi LoRaWAN Antenna - RAK Wireless
RAK 925027 White LoRaWAN Antenna — 902 to 928 MHz
The RAK Wireless 925027 is the white variant of the 5.8 dBi fiberglass outdoor antenna designed for frequencies from 902 to 928 MHz. It is particularly suitable for US915 LoRaWAN networks and other regional plans compatible with this range.
Frequency and Gain
The antenna covers the 902–928 MHz range. Its announced maximum gain is 5.8 dBi and its omnidirectional vertical polarization allows for coverage around the installation point.
Connector and Mounting

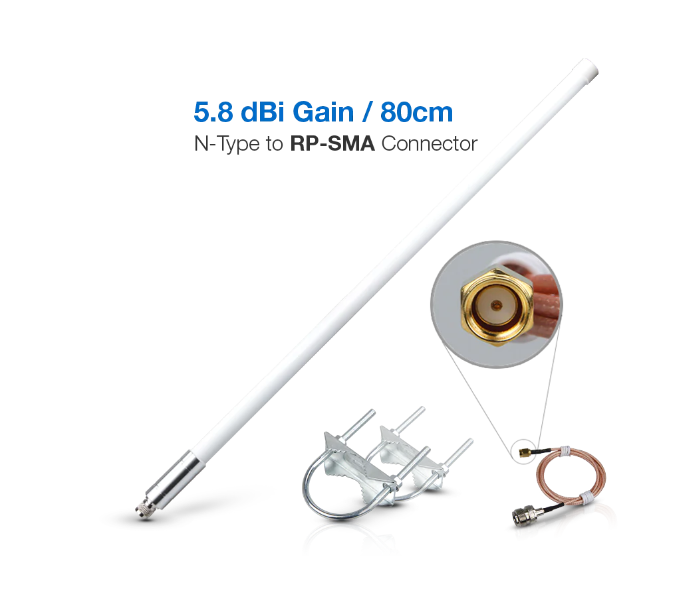

The 925027 uses a Type N male connector and a white fiberglass radome. Two mounting brackets are included for installation on a pole or compatible structure.
Dimensions and Environment
The antenna measures approximately 800 mm. Its operating range is from -40 to +60 °C. It is designed for outdoor installations of LoRaWAN gateways compatible with 902–928 MHz.
Compatibility
Note: this 925027 reference is not an EU868 antenna. Check the radio band of the gateway before ordering.
| Specifications | |
|---|---|
Operating Temperature |
|
Mounting Type |
Mast with supports included
|
Antenna Gain |
|
Connector Type |
|
Frequency Range |
|
Antenna Type |
|
Outdoor |
|
