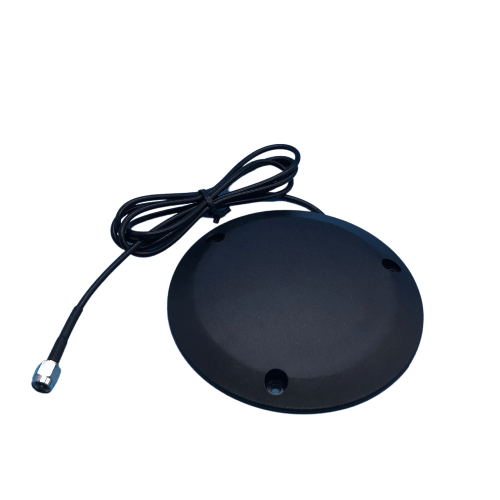

LoRaWAN Omnidirectional Antenna PLA-868-SM-1K
Presentation of the PLA-868-SM-1K Antenna :
The PLA-868-SM-1K antenna is an ultra-compact, low-profile 868 MHz antenna specifically designed for IoT applications requiring discreet and robust installation. Operating in the 865–870 MHz band, it offers 3.0 dBi gain with linear polarization and omnidirectional radiation, making it an ideal choice for LoRa, Sigfox , or other sub-GHz communications protocols.
At only 14 mm in height and with a diameter of 100.1 mm, this antenna is ideal for environments with space or height constraints such as meter pits , parking systems , telemetry installations or outdoor industrial applications . Its UV-resistant PC/ABS casing ensures excellent durability against weather and solar radiation.
The antenna is supplied with a one-meter RG174 cable terminated with a male SMA connector, allowing easy integration into your systems. It is mounted by permanent fixing to a flat surface using three mounting holes . Thanks to its IP67 protection rating , it is completely dust and waterproof, and can be used in demanding environments without compromising on reliability.
| Caractéristiques | |
|---|---|
Montage |
Surface plane and Vis
|
Protection IP |
|
Gain |
|
Type de connecteur |
|
Gamme de fréquences |
|
Type d'antenne |
|
Longueur de câble |
|
Outdoor |
|
