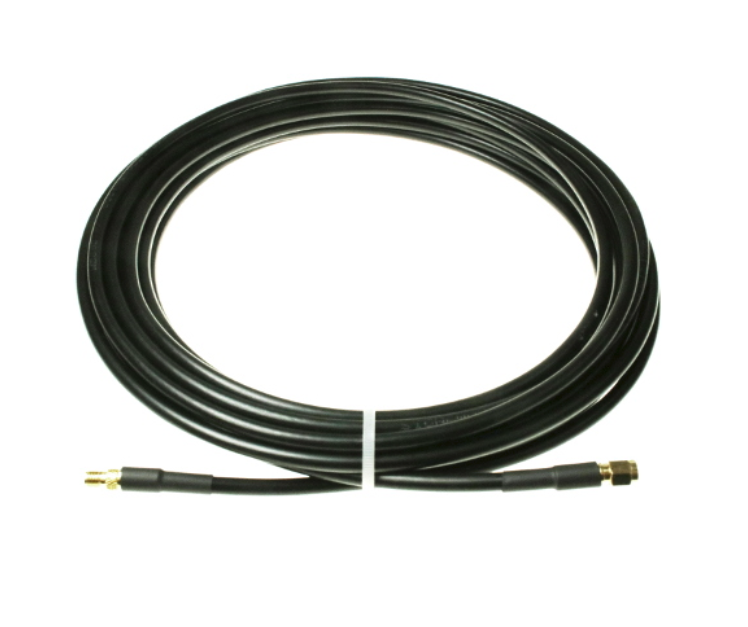

Low loss SMA(m) to SMA(f) extension cable 5m

Extension cable for connecting antennas to various modules, boards or PCBs

The SMA(f) to SMA(m) adapter is designed for the frequency range of the connector with LP .195 series cable, the cable length is 5m and the diameter is 4.95mm. The SMA connector has a guarantee of up to 500 cycles

Cable adapters (pigtails) serve as an extension to connect e.g. 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, cards, Mini PCI, etc.

• Type .195 cable: diameter 4.95 mm

• Cable length: 5 m

• Connector A: SMA(f)

• Connector B: SMA(m)

• Certification: RoHS

Connector A, B - SMA connector:

These are high frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range is up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Connection and disconnection of connectors is guaranteed for up to 500 cycles. The temperature range is -65°C to +165°C. Most of today's cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas. It is also used as a standard connector in RF measurement technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications:

The .195 coaxial cable is compatible with connectors applicable to 4.95mm outer diameter cables. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40°C to +85°C. The shortening factor is set to 0.79. .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used to create cable adapters with pluggable connectors such as BNC/N/SMA/TNC. There are also types of .195 cables specially modified for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are different materials, different qualities.
