CT305 - LoRaWAN 500 A Current Sensor - Milesight
CT305 - 500 A LoRaWAN Current Sensor - Milesight

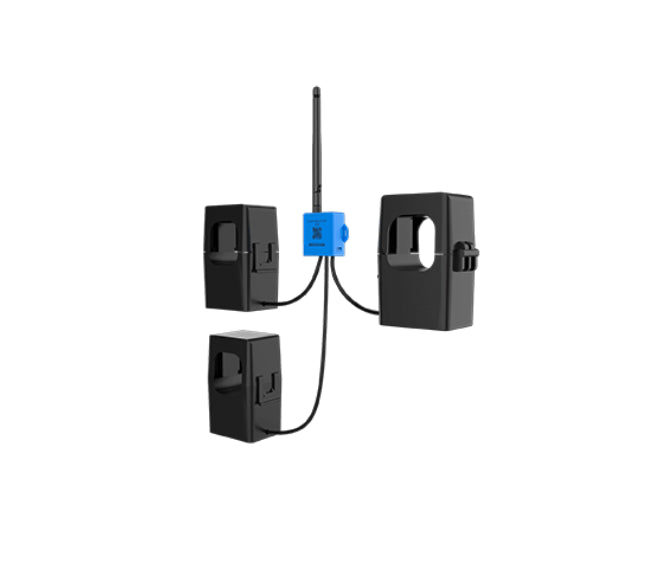

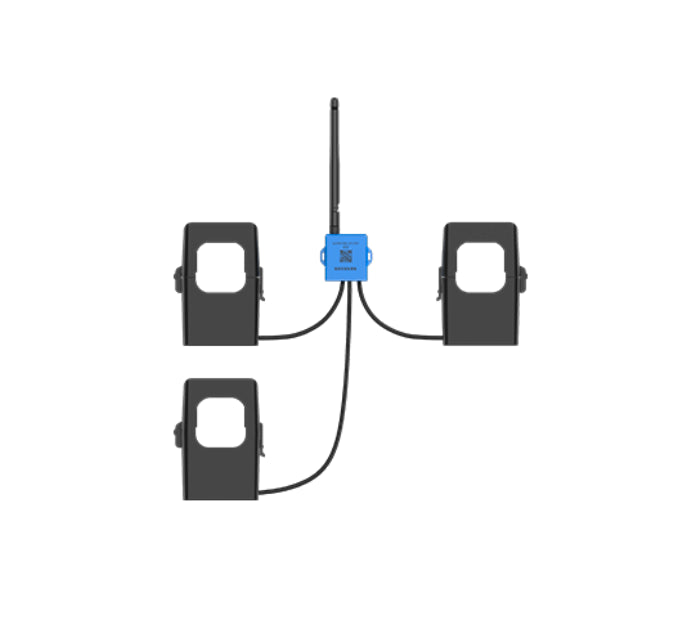

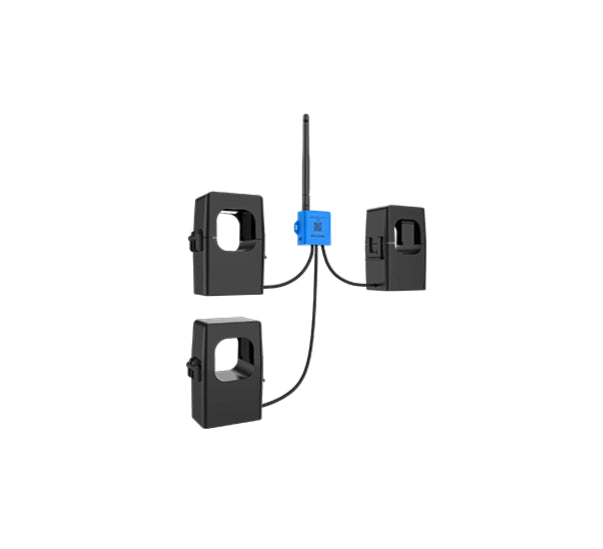

The Milesight CT305 is a LoRaWAN current sensor for energy monitoring up to 500 A. It measures RMS current and cumulative current to track the electrical usage of a circuit or equipment.
Current Measurement
The CT305 is suitable for high-current electrical feeders. Its clamp-on installation allows current measurement without interrupting the circuit. It can help detect overconsumption, threshold exceedances, or operational drifts.
LoRaWAN Transmission
The sensor transmits its data via LoRaWAN in Class A on the 868 MHz band. The information can be used in a compatible IoT platform for energy monitoring, alerts, or consumption analysis.
Installation and Power Supply
The CT305 is self-powered by induced current. Configuration can be done via USB Type-C or downlink. Its IP30 rating makes it suitable for indoor installations, particularly in electrical cabinets, enclosures, or technical rooms.
Applications
The CT305 is suitable for commercial buildings, industrial sites, electrical panels, technical equipment, and installations requiring current measurement up to 500 A.
Highlights
- 500 A LoRaWAN current sensor
- Measures RMS current and cumulative current
- Non-invasive clamp-on installation
- LoRaWAN Class A communication at 868 MHz
- Self-powered by induced current
- Indoor use, IP30 rating
| Specifications | |
|---|---|
Power Supply |
Self-powered by induced current and USB Type-C 5 V
|
Certifications |
CE and IP30
|
Sensor Type |
|
LoRaWAN Class |
|
Battery Type |
|
Configuration Mode |
|
Frequency Range |
|
