EM500-SMTC - LoRaWAN Soil Moisture and Electrical Conductivity Sensor - Milesight

EM500-SMTC - LoRaWAN Soil Moisture and Conductivity Sensor - Milesight

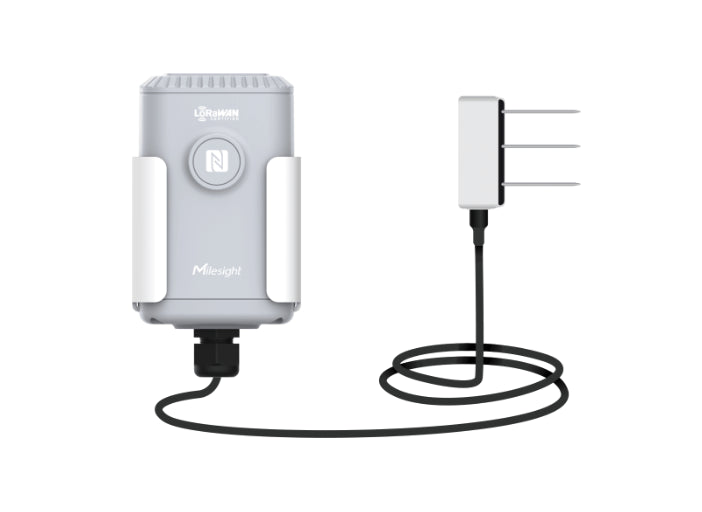

The Milesight EM500-SMTC is an agricultural LoRaWAN sensor designed to measure soil moisture, temperature, and electrical conductivity. It allows for remote monitoring of soil conditions without network cabling in smart agriculture, irrigation, or greenhouse monitoring applications.

Measurement and Monitoring

The probe measures key soil parameters: moisture, temperature, and electrical conductivity. This data helps to better understand growing conditions, track moisture changes, and adapt field decisions according to actual needs.

LoRaWAN Transmission

Measurements are transmitted via LoRaWAN Class A on the 868 MHz band. The sensor can be paired with a LoRaWAN gateway and a compatible IoT platform to centralize data, view historical records, and set up alerts.

Installation and Battery Life

The transmitter has an IP67 enclosure, and the soil probe is IP68. The sensor operates on a replaceable 19000 mAh Li-SOCl2 battery. Configuration can be done via NFC, USB Type-C, PC software, or downlink.

Applications

The EM500-SMTC is suitable for smart agriculture, greenhouses, irrigation, horticulture, golf courses, and outdoor sites requiring reliable soil monitoring.

Key Features

• Measures soil moisture, temperature, and electrical conductivity
• LoRaWAN Class A communication on 868 MHz
• IP68 probe and IP67 transmitter
• 19000 mAh Li-SOCl2 battery
• NFC, USB Type-C, or downlink configuration
• Suitable for smart agriculture and irrigation
