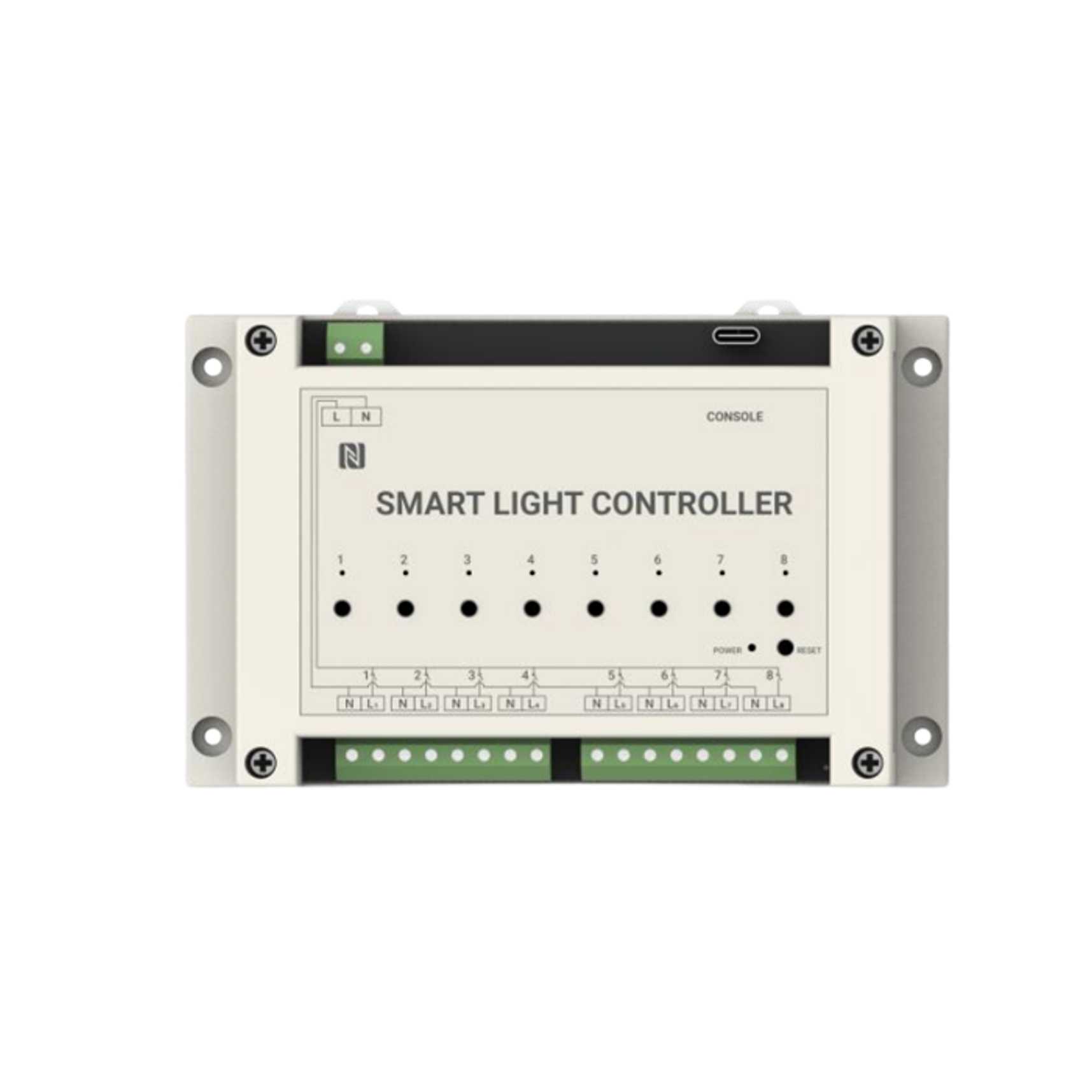

WS558-868M PN:LN - LoRaWAN Smart Light Controller with 8 Relays - Milesight

WS558-868M PN:LN - LoRaWAN 8-Output Lighting Controller - Milesight

The Milesight WS558-868M PN:LN is a LoRaWAN lighting controller designed to manage multiple lighting circuits locally or remotely. This LN version features 8 active outputs and is suitable for installations where outputs need to directly control compatible loads.

Interfaces and Outputs

The WS558 PN:LN has 8 active outputs, with a maximum of 5 A per output and 16 A total. It also allows tracking electrical information such as voltage, current, power, and consumption, which is useful for energy monitoring.

LoRaWAN Transmission

The controller communicates via LoRaWAN Class C on the 868 MHz band. It can be integrated with a LoRaWAN gateway and a compatible IoT platform to control outputs, monitor states, and trigger scenarios. It also supports Milesight D2D for certain compatible local uses.

Installation and Power Supply

The WS558 PN:LN operates with a 100-240 VAC power supply. It can be wall-mounted or DIN rail-mounted depending on the installation. Its design is suitable for smart buildings, renovations, and technical panels.

Applications

This controller is suitable for offices, hotels, commercial buildings, technical rooms, retail spaces, and installations requiring multi-output lighting control via LoRaWAN.

Highlights

• 8x active outputs
• 5 A max per output, 16 A total
• Measures voltage, current, power, and consumption
• LoRaWAN Class C communication at 868 MHz
• 100-240 VAC power supply
• Wall or DIN rail mounting
