AM319L - Advanced LoRaWAN Indoor Air Quality Sensor - Milesight

AM319L - Advanced LoRaWAN Air Quality Sensor - Milesight

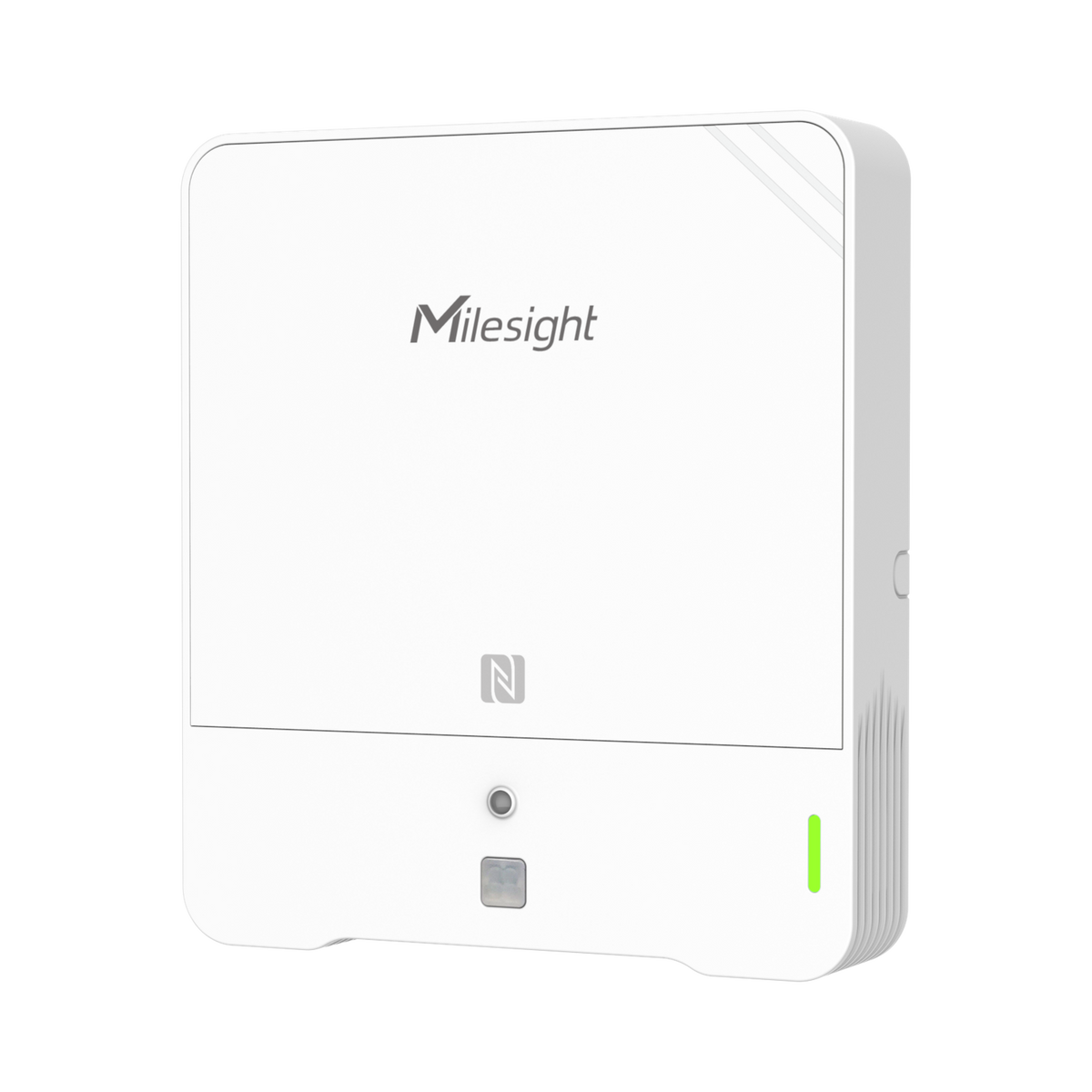

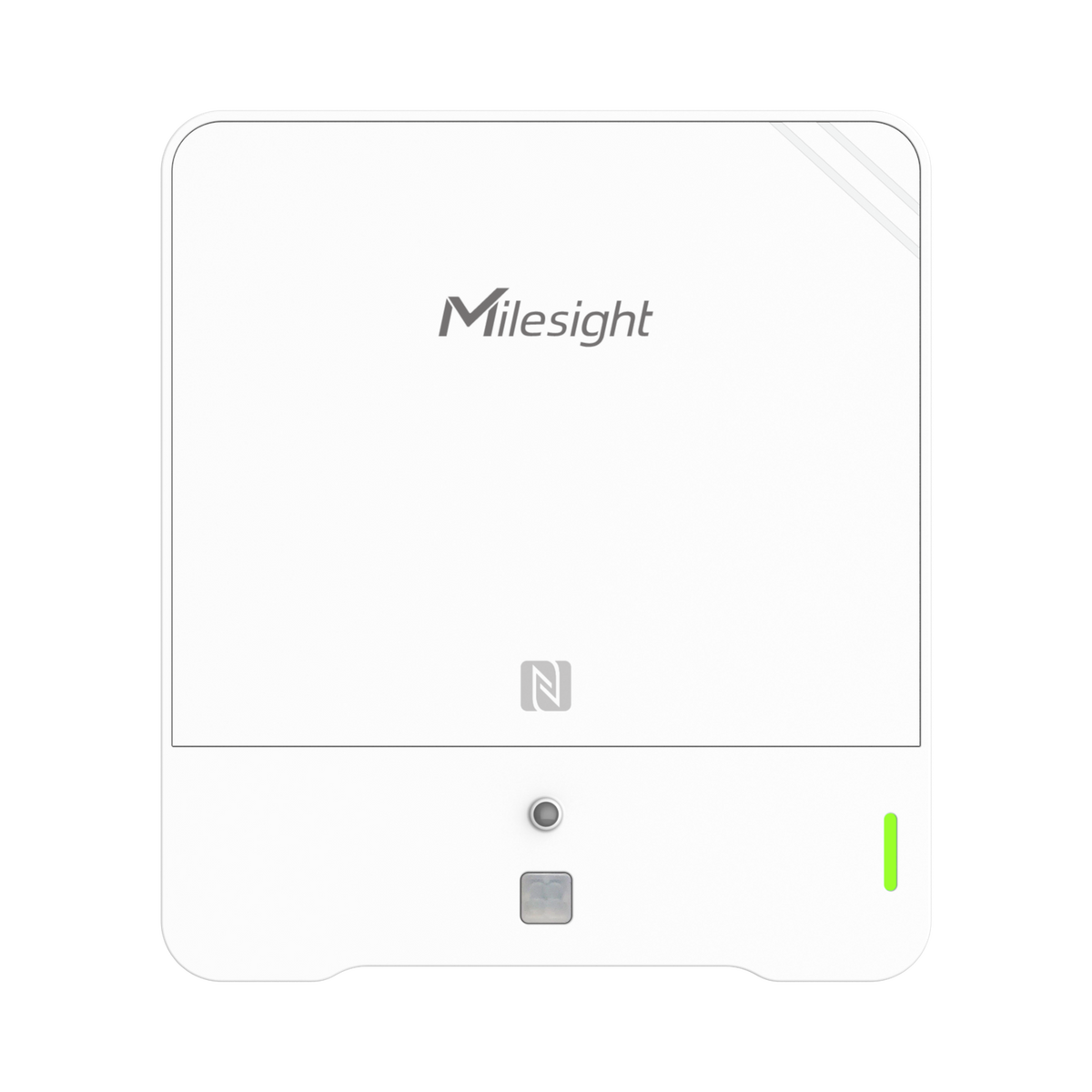

The Milesight AM319L is an advanced indoor LoRaWAN ambient sensor designed for air quality and comfort monitoring in professional buildings. This sheet is currently a draft, but its content has been harmonized to prepare a clear and actionable presentation.

Measurement and Monitoring

The sensor tracks CO2, TVOC, particulate matter, pressure, temperature, humidity, light, and PIR presence. These measurements help qualify ambient conditions and detect situations requiring ventilation, maintenance, or operational intervention.

LoRaWAN Transmission

Data is transmitted via LoRaWAN in Class A on the 868 MHz band. The AM319L can be paired with a LoRaWAN gateway and a compatible IoT platform to centralize measurements and set up alerts.

Installation and Battery Life

Configuration can be done via NFC, USB Type-C, mobile application, or PC software. The sensor is designed for indoor installation and integrates into a professional IoT architecture without local network cabling.

Applications

The AM319L is suitable for offices, schools, healthcare facilities, retail, and tertiary buildings. It meets indoor air quality, comfort analysis, and Smart Building supervision needs.

Key Features

• Advanced ambient sensor for indoor air quality
• Measures CO2, TVOC, particulate matter, temperature, humidity, and pressure
• PIR presence detection and light measurement
• LoRaWAN Class A communication at 868 MHz
• NFC or USB Type-C configuration
• Integration into a professional IoT infrastructure
