Fanless Mini PC - SPW-1522N - N150

Intel N150 Fanless Industrial Mini PC

The SPW-1522N is a compact fanless Mini PC based on the Intel Twin Lake N150 processor. Its aluminum alloy chassis and extensive connectivity are designed for automation, IoT, edge computing, industrial vision, and robotics applications.

Processing, Memory, and Display

The Intel N150 processor features four cores and four threads, with a maximum announced frequency of 3.6 GHz. One DDR5-4800 SO-DIMM slot supports up to 16 GB. Two HDMI outputs support dual display up to 4096 × 2160 at 60 Hz.

Storage and Expansion

Two M.2 2280 slots are documented: the first accepts PCIe 3.0 x1 or SATA, while the second uses PCIe 3.0 x1. A 2.5-inch bay completes the storage options. The system also includes an M.2 2230 E-Key slot for Wi-Fi and Bluetooth, as well as a Mini PCIe with a SIM slot for Wi-Fi or 4G expansion.

Industrial Connectivity

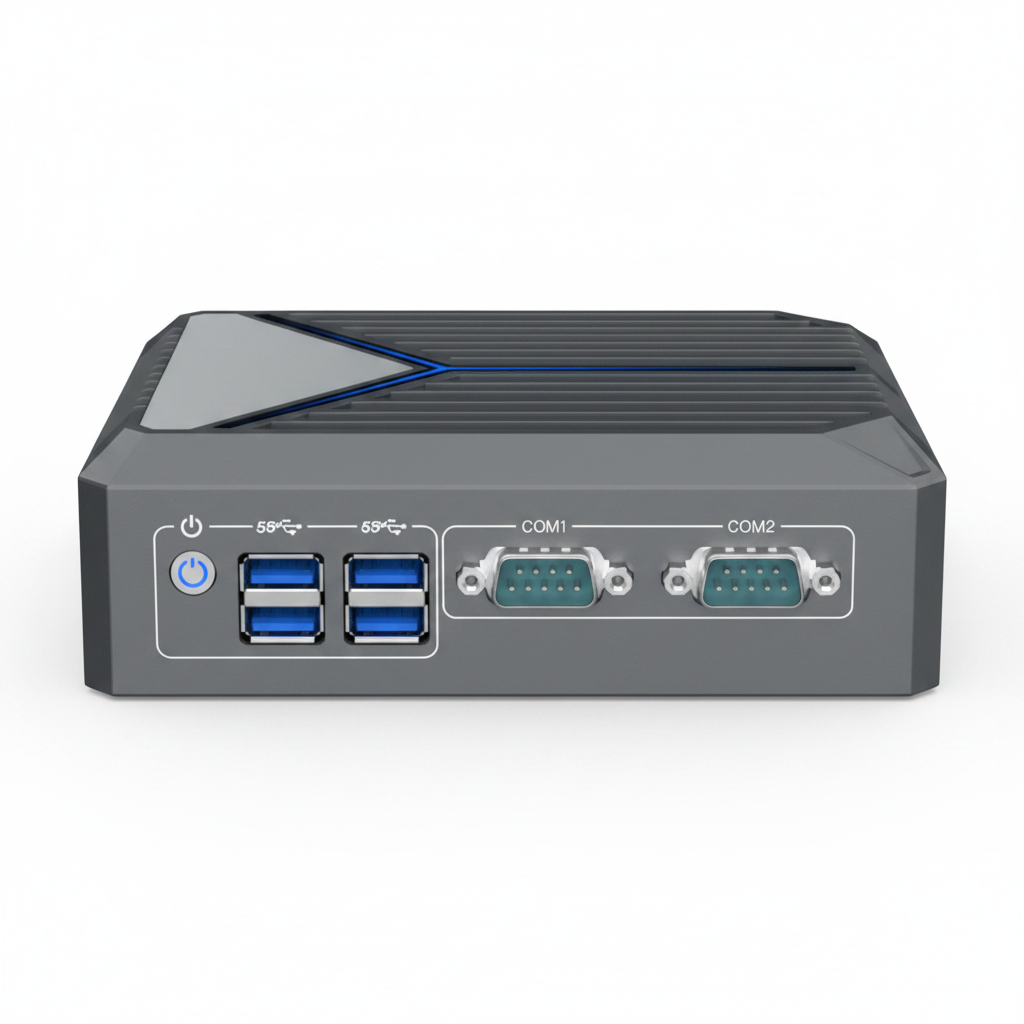

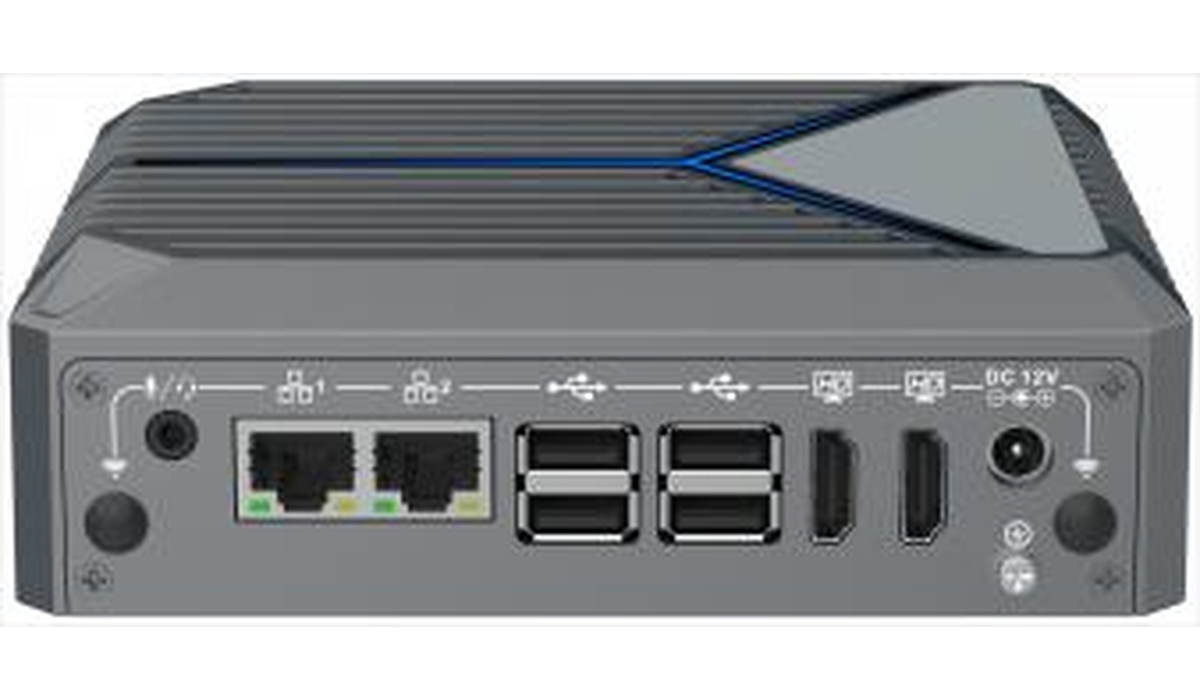

The case offers four USB 3.2 ports, four USB 2.0 ports, two Gigabit Ethernet ports, and two COM ports configurable as RS-232 or RS-485. An optional extension adds four GPIOs and one USB 2.0 port. Power is supplied at 12 VDC.

Highlights

• Fanless aluminum alloy design
• Intel N150, quad-core up to 3.6 GHz
• DDR5-4800 up to 16 GB
• Dual 4K HDMI at 60 Hz
• Two Gigabit LAN and eight USB ports
• Two M.2 2280 slots and one 2.5-inch bay
• TPM 2.0, Wake-on-LAN, PXE, and watchdog
