H076 - Mini PC - ARM Rockchip RK3576 - JWIPC

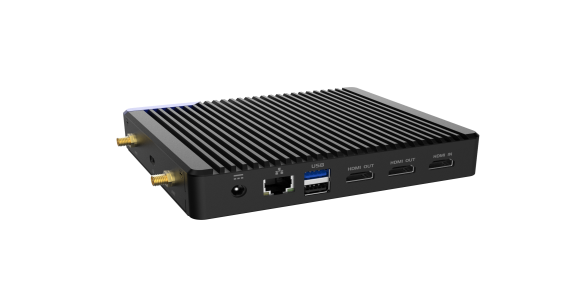

JWIPC H076 Fanless ARM Mini PC with Rockchip RK3576

The JWIPC H076 is a fanless Mini PC based on the Rockchip RK3576 platform. It is designed for digital signage, interactive kiosks, conferencing solutions, and applications requiring multiple 4K video streams.

ARM Processor and 4K Display

The RK3576 combines four Cortex-A72 cores and four Cortex-A53 cores up to 2.2 GHz, with an ARM Mali-G52 MC3 graphics processor. The platform can drive two 4K displays simultaneously.

Memory and Storage

The H076 integrates 4 GB of LPDDR4x memory. JWIPC offers eMMC 5.1 capacities of 32, 64, or 128 GB. The exact eMMC capacity of this Shopify SKU is not structured in the title and must be confirmed for the delivered configuration.

Video and Network Connectivity

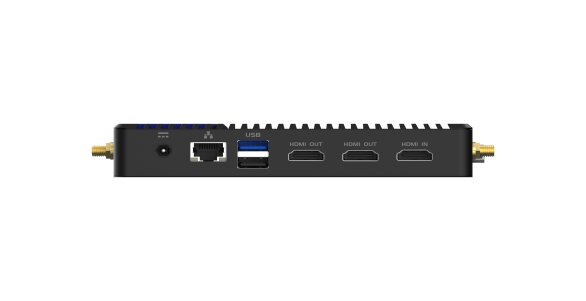

The casing features two HDMI 2.0 outputs up to 4K at 60 Hz and one HDMI input up to 1080p at 60 Hz. The Gigabit Ethernet port supports 48 W PoE PD-in power. Wi-Fi 6 and Bluetooth 5.2 are supported by the documented module.

Interfaces and Extensions

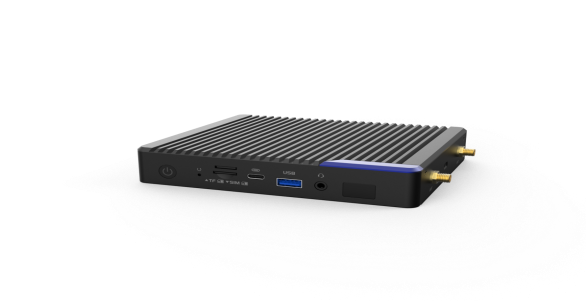

Connectivity includes two USB 3.0 ports, one USB 2.0, one USB Type-C, one RS232 port, a microSD reader, a SIM slot, and a combined audio jack. 4G or 5G connectivity is optional and not presented as included.

Power and System

The H076 runs Android 14 and accepts a 12 VDC power supply. Its fanless chassis measures 151 × 129 × 27 mm. The documented operating temperature ranges from -5 to +45 °C.
