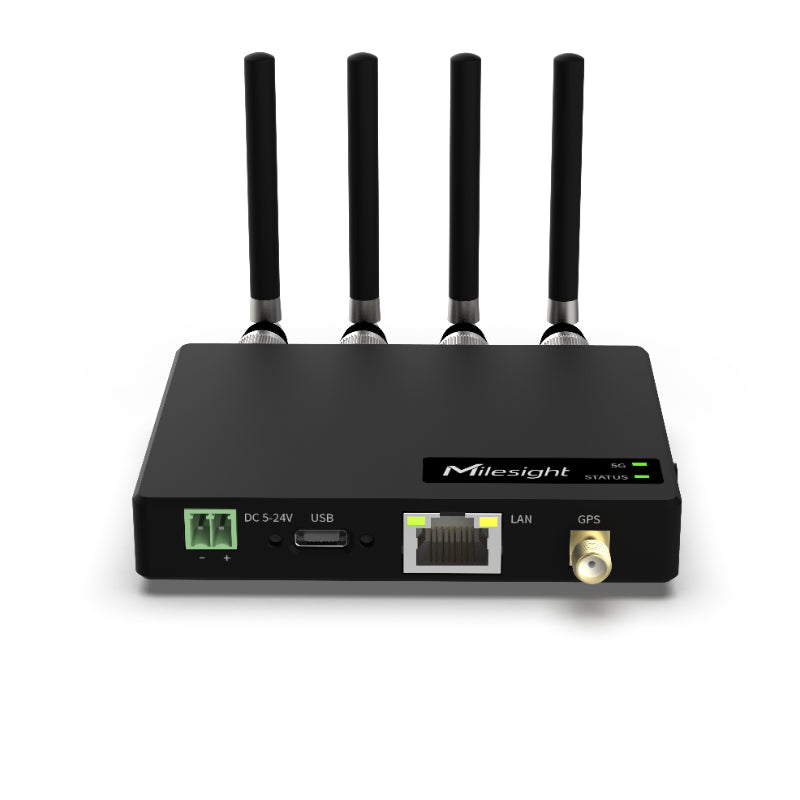

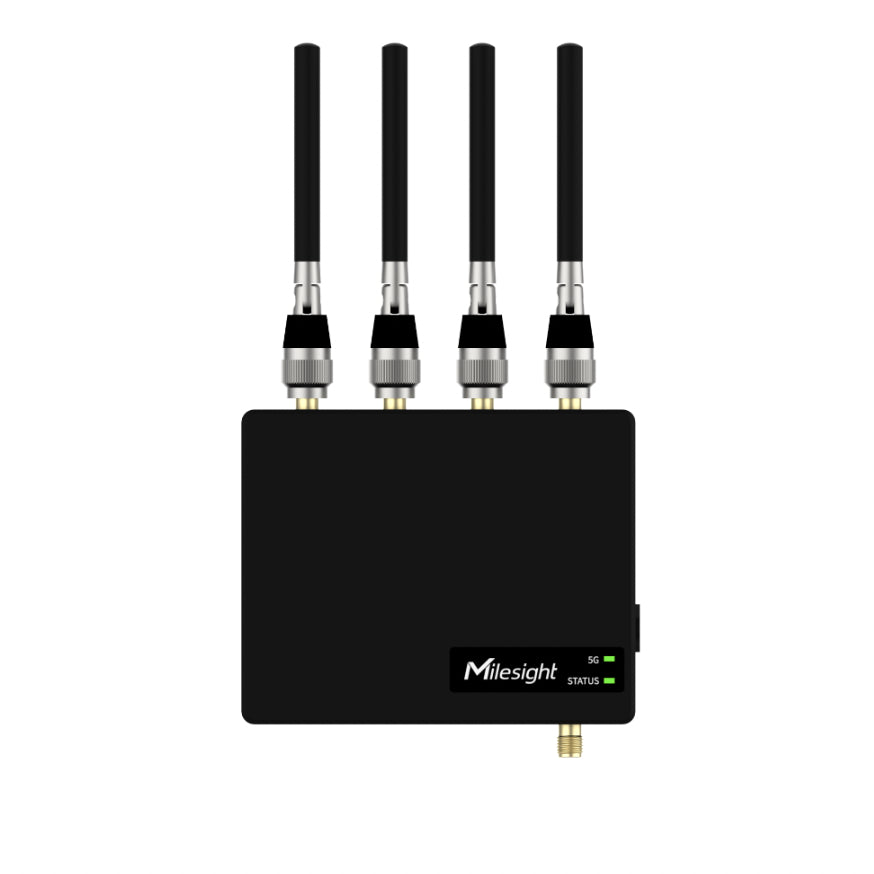

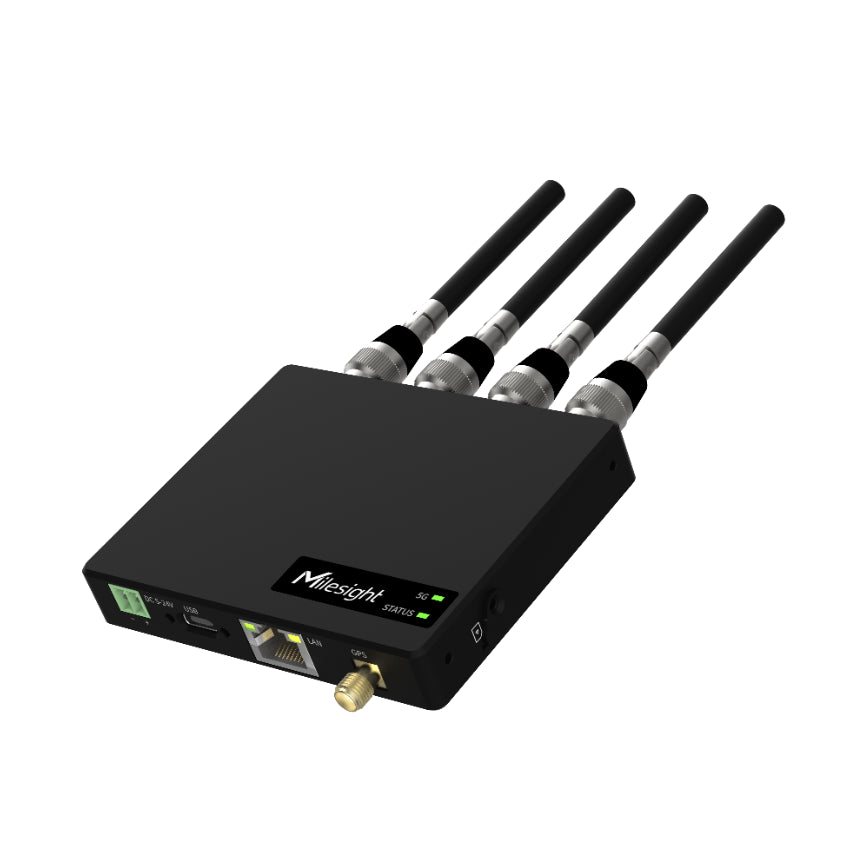

UF31 - 5G USB-C / Ethernet Industrial Modem - Milesight

5G Industrial Modem with USB Type-C, Gigabit Ethernet and GNSS

The Milesight UF31 is a compact industrial 5G modem designed for IoT integrations, embedded systems, field equipment, and mobile applications. It combines 5G SA/NSA connectivity, Gigabit Ethernet, USB 3.0 Type-C, GNSS, and network security features.

5G Connectivity for Embedded Applications

The UF31 supports 5G SA/NSA networks, with 4G LTE and WCDMA fallback. It offers speeds up to 2.5 Gbps download, depending on the available network and operator.

Gigabit Ethernet and USB Type-C

The modem features a Gigabit Ethernet port and a USB 3.0 Type-C port. This dual interface facilitates integration with a router, industrial PC, IoT gateway, camera, PLC, or embedded system.

GNSS, VPN, and Monitoring

The integrated GNSS enables localization and mobility applications. The UF31 also offers VPN tunnels, an Iptables firewall, Web/CLI administration, and compatibility with the DeviceHub platform for remote monitoring and management.

Compact Industrial Design

With its 5-24 VDC or 5 V USB Type-C power supply, -20 °C to +50 °C operating temperature, and desk, wall, or DIN rail mounting options, the UF31 integrates easily into field equipment or technical cabinets.

Key Features

• Industrial 5G SA/NSA modem
• Up to 2.5 Gbps download speed
• 1 physical SIM slot
• 1 Gigabit Ethernet port
• 1 USB 3.0 Type-C port
• Integrated GNSS and VPN tunnels
