Description
Description
On-board M.2 cellular module
SIM7600G-HM.2 series is the LTE Cat 4 module which supports LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. wireless communication modes. It supports a maximum downlink rate of 150 Mbps and an uplink rate of 50 Mbps.

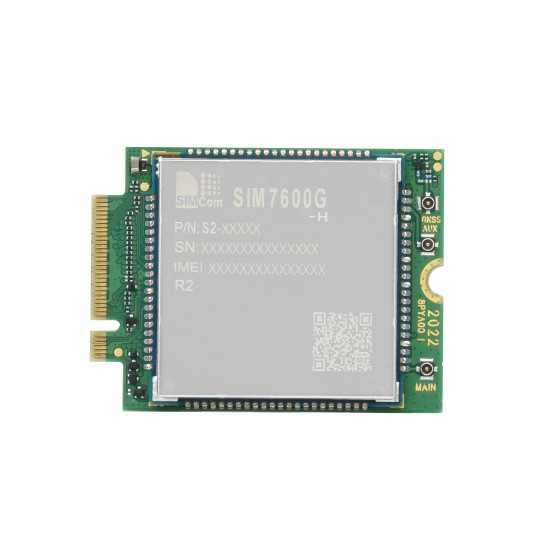

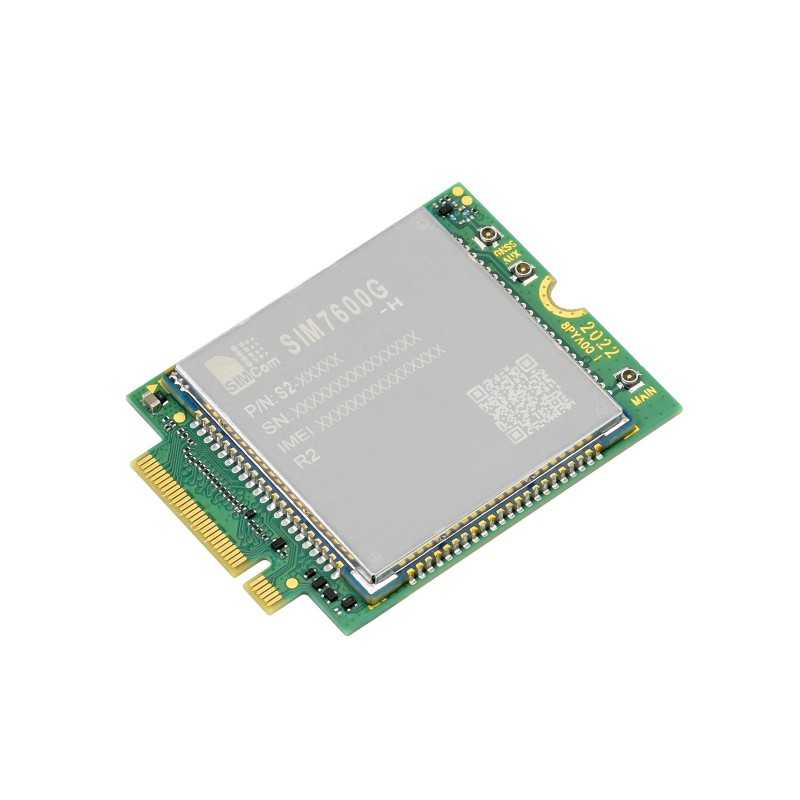

The SIM7600G-HM.2 series adopts the M.2 form factor and consists of a SIM7600-H series module and an M.2 adapter card. It's easy for customers to onboard.
The SIM7600G-HM.2 series integrates multiple high-precision satellite positioning GNSS systems, with multiple network protocols built-in, supports drivers for major operating systems (USB driver for Windows, Linux and Android, etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
SIM7600G-HM.2 series integrates major industrial standard interfaces, with powerful scalability, including abundant interfaces such as UART, USB, GPIO, which is suitable for major IoT applications such as telematics, monitoring devices, CPE , industrial routers and remote control. diagnosis etc.
Technical specifications
| Frequency bands | ||||||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | |||||
| LTE-TDD | B34, B38, B39, B40, B41 | |||||
| WCDMA | B1, B2, B4, B5, B6, B8, B19 | |||||
| GSM | 850, 900, 1800, 1900MHz | |||||
| GNSS | GPS, Beidou, GLONASS, GALILEO, QZSS | |||||
| Data Transfer | ||||||
| LTE | 150 Mbps (DL) / 50 Mbps (UL) | |||||
| HSPA+ | 42 Mbps (DL) / 5.76 Mbps (UL) | |||||
| WCDMA | 384 Kbps (DL) / 384 Kbps (UL) | |||||
| EDGE | 236.8 Kbps (DL) / 236.8 Kbps (UL) | |||||
| GPRS | 85.6 Kbps (DL) / 85.6 Kbps (UL) | |||||
| Software Features | ||||||
| Operating system | Windows/Linux/Android | |||||
| Protocol | TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS | |||||
| SMS | Supports MT, MO, CB, Text, PDU | |||||
| Firmware upgrade | USB/FOTA | |||||
| Hardware Specifications | ||||||
| SIM card | 1.8V/3.0V | |||||
| Antenna interface | IPEX-4 connector (LTE main antenna + LTE diversity antenna + GNSS antenna) | |||||
| Power supply | 3V ~ 4.2V | |||||
| Form factor | M.2 B KEY | |||||
| Dimensions | 42.0 × 31.4 × 3.8mm | |||||
| Operating temperature | -40℃ ~ +85℃ | |||||
| Applications | ||||||
| Applicable regions | global coverage | |||||
