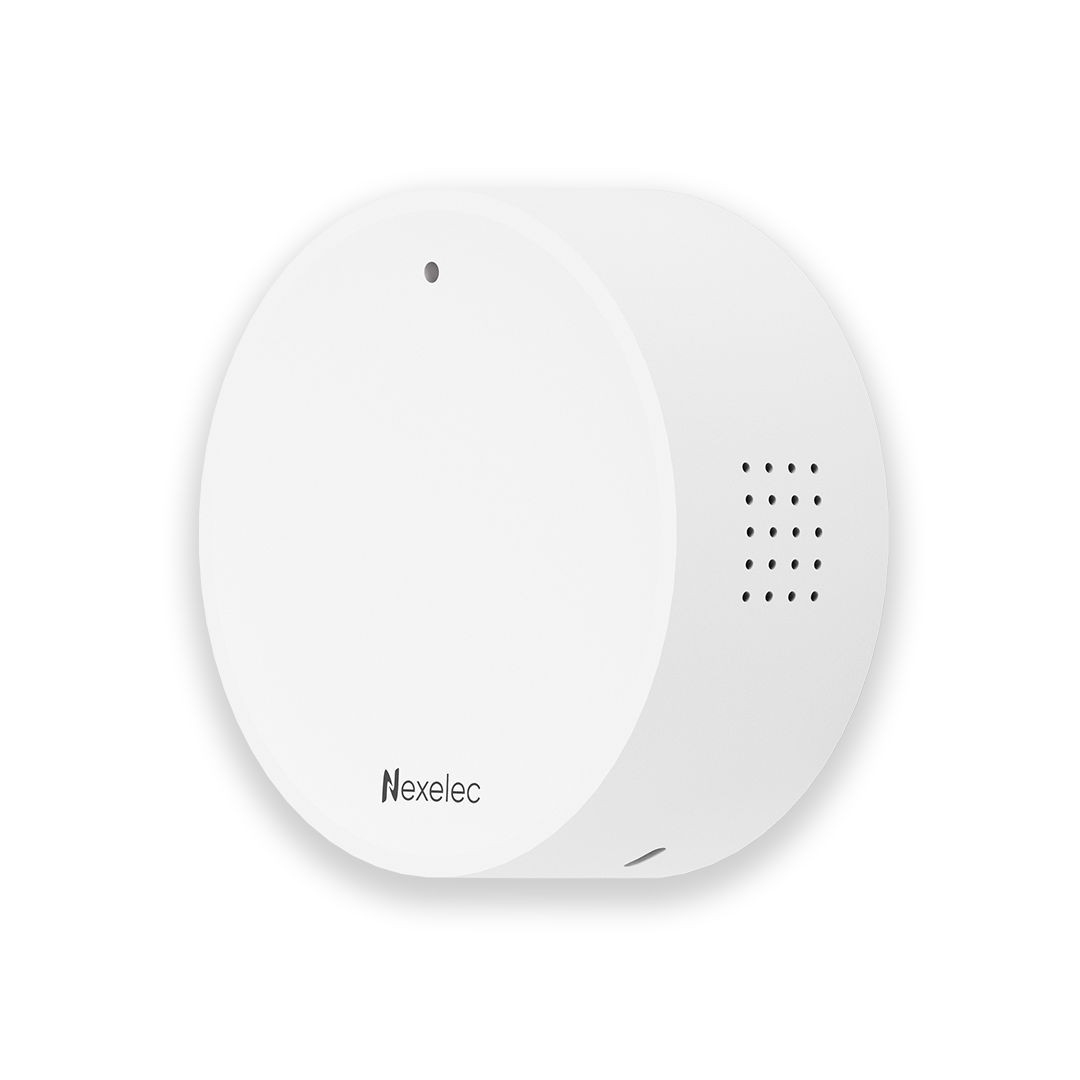

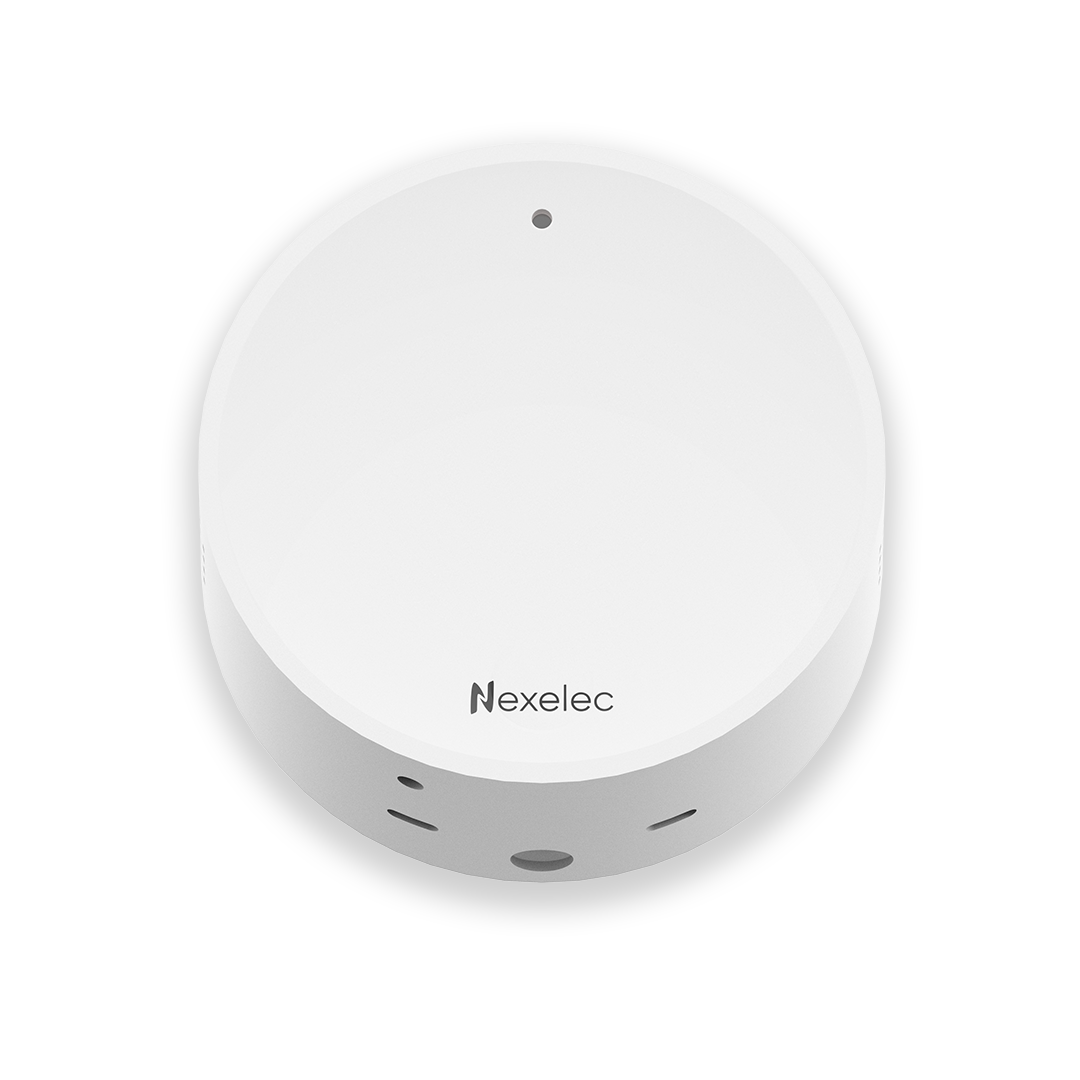

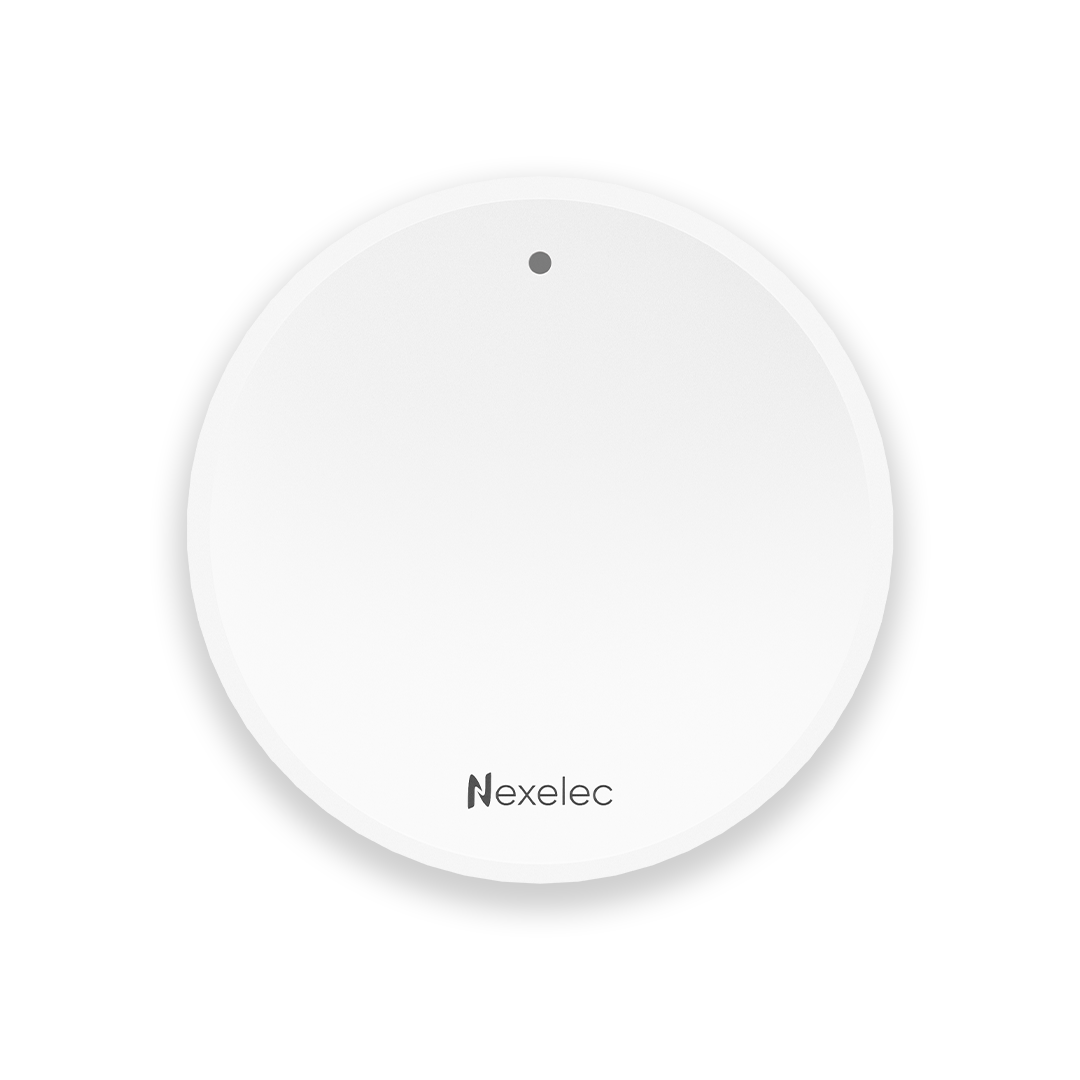

NODE ONE - X110FK - Remote temperature sensor - Nexelec

NODE ONE X110FK - Nexelec Remote Temperature Sensor

The NODE ONE X110FK is a remote temperature sensor designed to complement Nexelec FLOW thermostatic heads. It measures the actual room temperature at a location more representative than the radiator, to improve regulation accuracy and thermal comfort.

Installed freestanding or wall-mounted, the NODE ONE transmits temperature measurements to FLOW heads via an L2D1 868 MHz radio link. A single NODE ONE sensor can control up to 15 FLOW thermostatic heads, making it suitable for rooms with multiple radiators.

Precise ambient temperature measurement

The sensor automatically takes a measurement every 10 minutes with an accuracy of ±0.4 °C and a resolution of 0.1 °C. It allows the regulation to be based on the actual ambient temperature, even when the thermostatic head is installed in a less representative area, near a radiator, a curtain, or an enclosure.

Quick installation and simplified pairing

The NODE ONE can be placed on a piece of furniture or wall-mounted using the supplied accessories. Pairing with FLOW thermostatic heads is simple thanks to the integrated button. Its compact design facilitates integration in collective housing, offices, bedrooms, classrooms, or commercial buildings.

Long-lasting battery life

Powered by a replaceable CR2450 lithium battery, the sensor offers up to 12 years of battery life depending on usage conditions. It is an ideal accessory to improve the performance of Nexelec connected heating installations.

Main features

• Reference: X110FK
• Function: remote temperature sensor for FLOW heads
• Radio link: L2D1 868 MHz
• Automatic measurement every 10 minutes
• Accuracy: ±0.4 °C
• Resolution: 0.1 °C
• Up to 15 FLOW heads controlled by one NODE ONE
• Installation: freestanding or wall-mounted
• Configuration: pairing button
• Power supply: 1 replaceable CR2450 lithium battery
• Battery life: up to 12 years depending on usage
• Certifications: CE, UKCA

Package contents

• 1 NODE ONE remote temperature sensor
• 1 CR2450 lithium battery
• 1 anti-theft screw
• 2 screws and wall plugs
• 1 adhesive mount
