15.6" Panel PC - OVS-156C3 - J6412 - JWIPC
15.6-inch Open Frame Industrial Panel PC

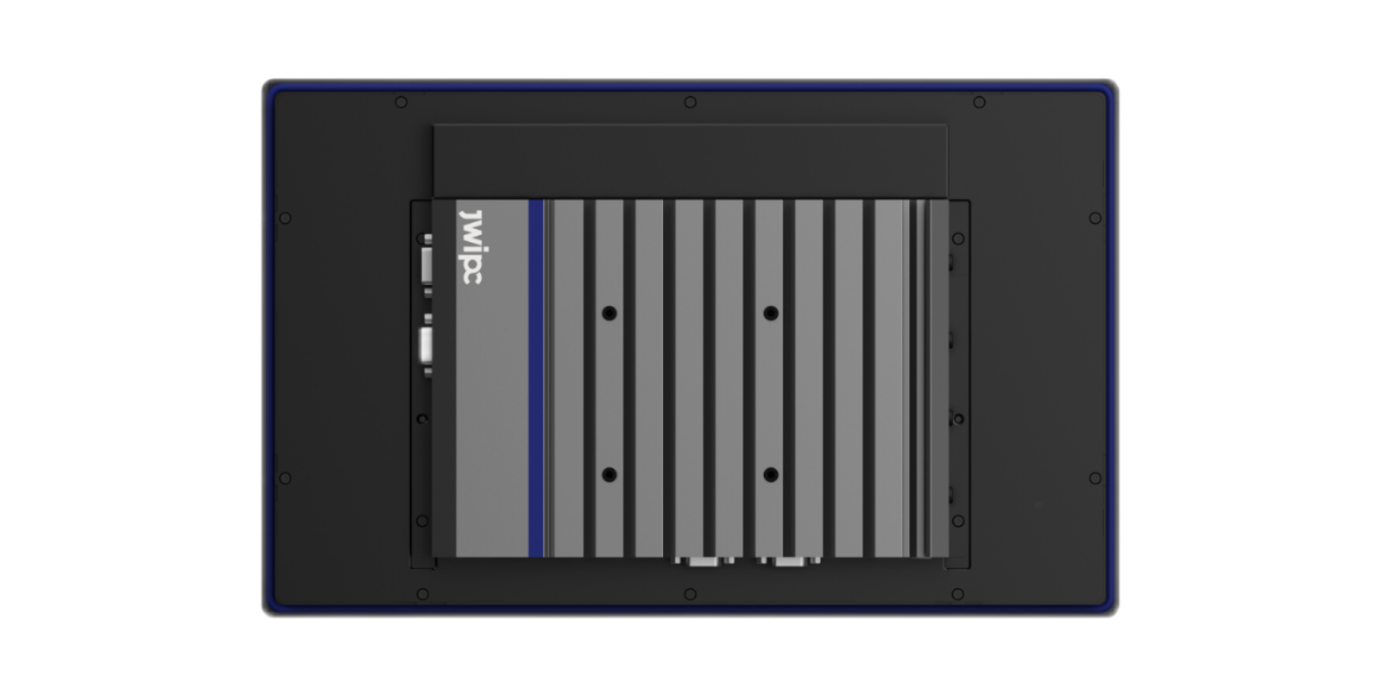

The JWIPC OVS-156C3-EHL-8FB-01 combines a Full HD touchscreen with an Intel Elkhart Lake platform in an open frame format designed for integration. Its fanless and modular design allows it to be installed in a console, machine, or visualization equipment without modifying the host system's facade.
Touch Display for Industrial Integration

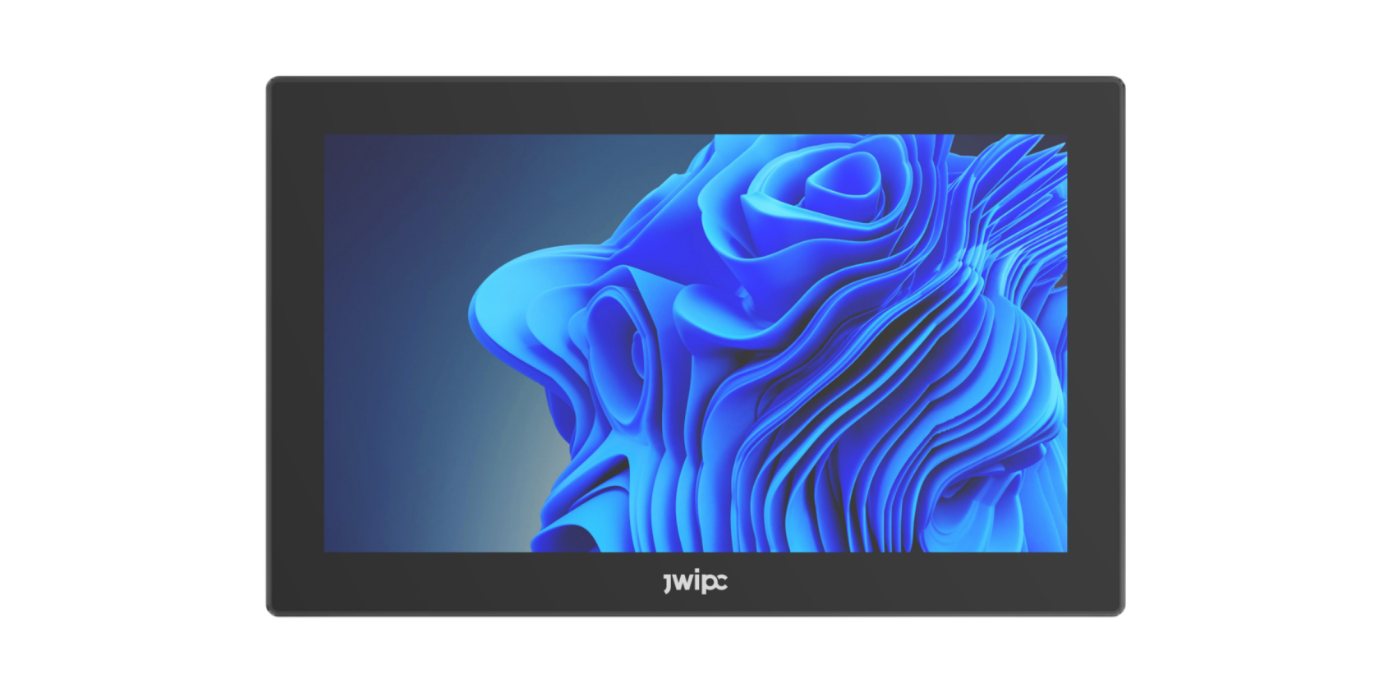

The 15.6-inch LED screen displays a resolution of 1920 × 1080 in 16:9 format. The capacitive touch panel supports ten touch points. The advertised brightness is 300 cd/m², with a contrast of 800:1 and IP65 front panel protection. These characteristics are suitable for operator interfaces, data visualization, and integrated supervisory workstations.
Intel J6412 Platform and Connectivity

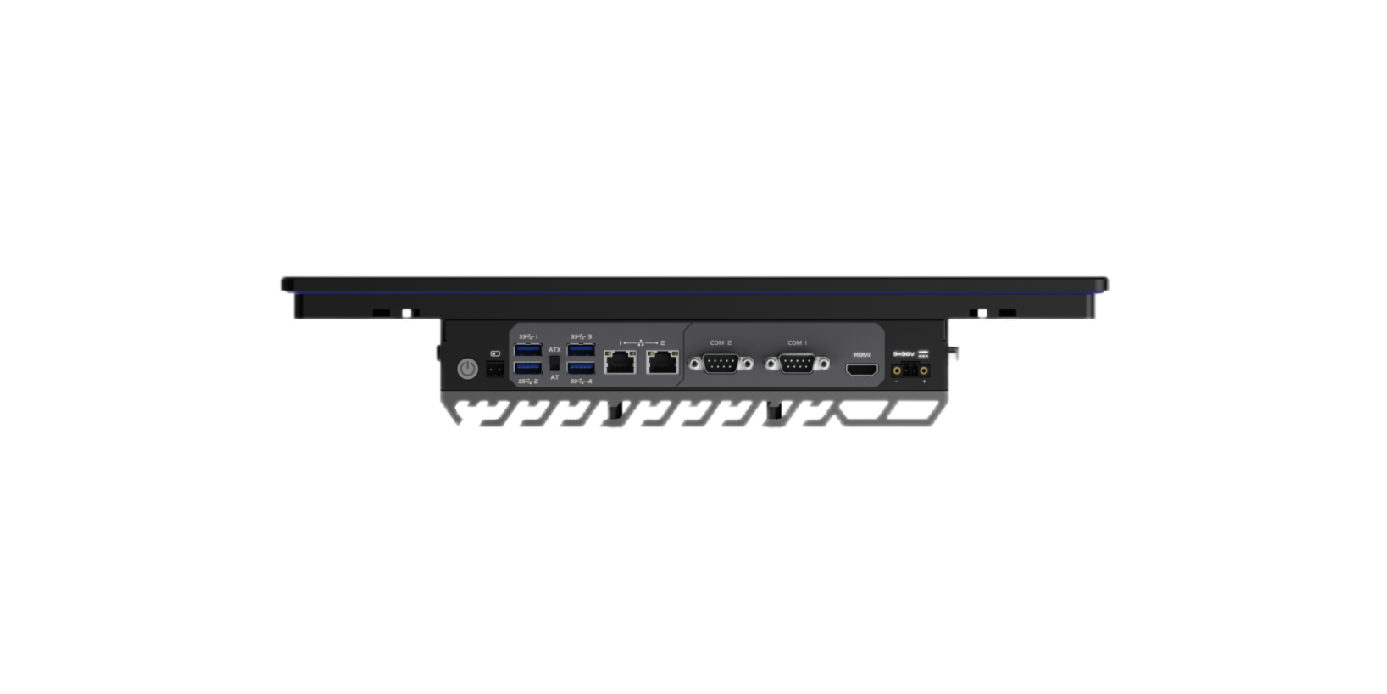

The exact variant OVS-156C3-EHL-8FB-01 integrates an Intel Celeron J6412 quad-core processor, 8 GB of memory, and a 256 GB SSD. The module features two Gigabit Ethernet ports, four USB 3.0 ports, two COM ports configurable as RS-232, RS-422, or RS-485, as well as an HDMI 1.4b output. M.2 slots are provided for optional Wi-Fi 6 and 4G/5G modules.
Power and Environment
The 12 to 36 VDC input benefits from protection against reverse polarity, short circuits, overvoltage, and overcurrent. The system is documented to operate from 0 to 50 °C. The manufacturer cites smart factories, wind power, photovoltaics, and environmental monitoring among the application areas for the OVS range.
Highlights
- 15.6-inch Full HD capacitive touch screen
- Intel Celeron J6412 with 8 GB RAM and 256 GB SSD
- Two Gigabit Ethernet ports and four USB 3.0 ports
- Two serial interfaces with RS-232, RS-422, or RS-485 modes
- IP65 front panel and wide range 12 to 36 VDC power supply
- Fanless and modular open frame architecture
| Specifications | |
|---|---|
Processor |
|
Memory |
|
Primary Storage |
|
Number of Storage Slots |
|
External I/O |
2 x RJ45 Gigabit Ethernet, 4 x USB 3.0, 2 x Configurable RS-232/422/485 COM, 1 x HDMI 1.4b, and 1 x Remote Switch Terminal
|
Expansion Slots |
1 x M.2 E-Key 2230 for optional Wi-Fi 6 module and 1 x M.2 B-Key 3042/3052 for optional 4G/5G module
|
Power Supply |
Input 12 to 36 VDC with RVP/SCP/OVP/OCP protections
|
Operating Temperature |
|
Mounting Type |
Open frame / Panel mount and Optional panel mounting clips
|
Operating Systems |
Windows 10, Windows 11, and Linux
|
Certifications |
CE Class A
|
Size |
Screens / monitors over 15"
|
Ratio |
|
Resolution |
|
Brightness |
|
Touch Technology |
|
Interfaces |
1 x HDMI 1.4b
|
IP Rating |
|
Number of LAN Ports |
|
|
|
|
Speed |
|
