15.6" Panel PC - OVS-156C5 - i5-1235U - JWIPC

15.6-inch open frame industrial PC panel with Core i5

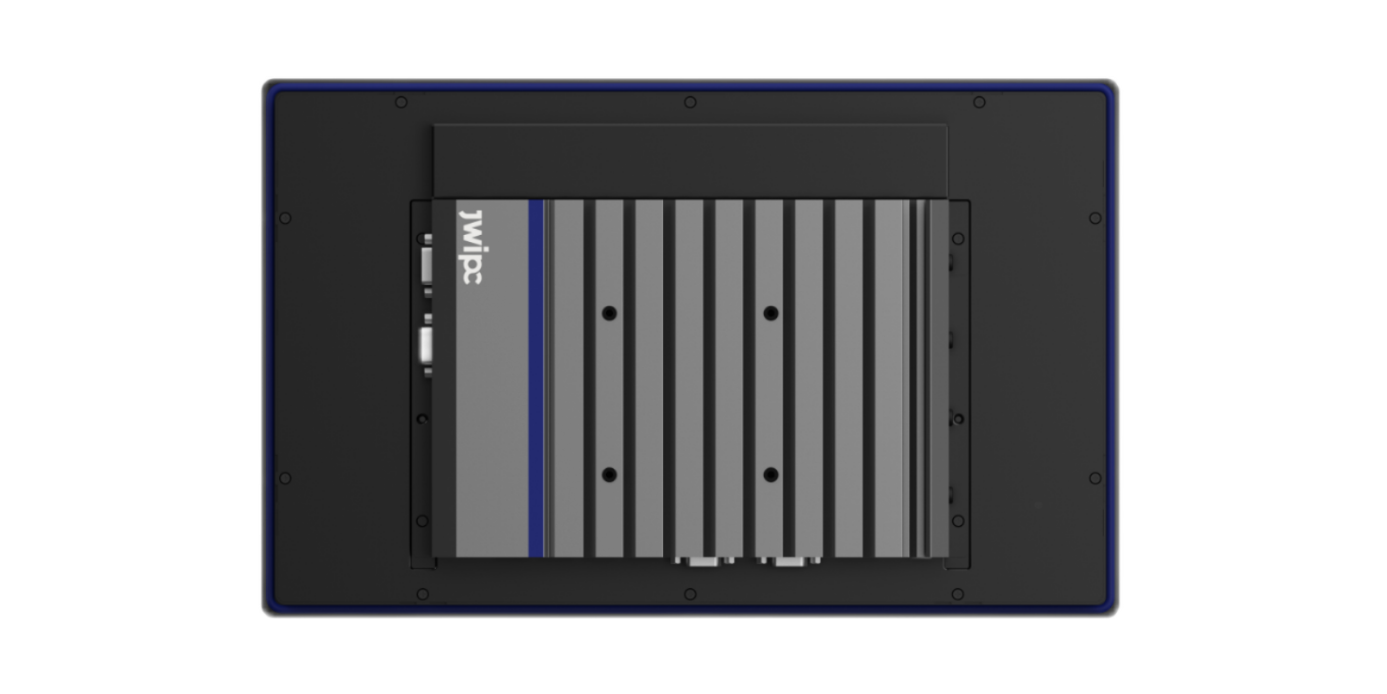

The JWIPC OVS-156C5-ADL5-8FB-01 combines a Full HD touchscreen and an Intel Alder Lake-U platform in an open frame chassis designed for integration. Its fanless and modular design makes it easy to install in a machine, operator console, or professional visualization system.

Full HD touchscreen for operator station

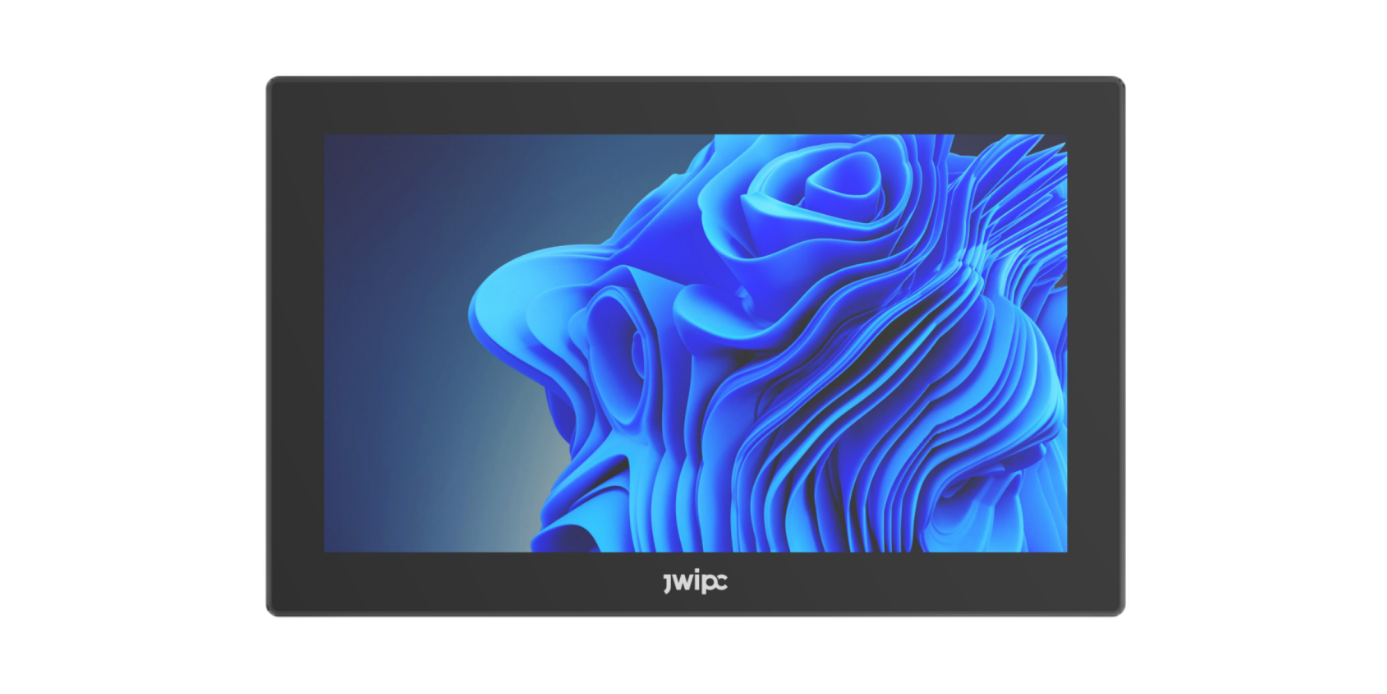

The 15.6-inch LED display features a resolution of 1920 × 1080 in 16:9 format. The capacitive touch panel supports ten points of contact. The rated brightness is 300 cd/m², with a contrast ratio of 800:1 and IP65 protection on the front panel. This setup is suitable for human-machine interfaces, dashboards, and integrated supervision stations.

Alder Lake-U platform and industrial connectivity

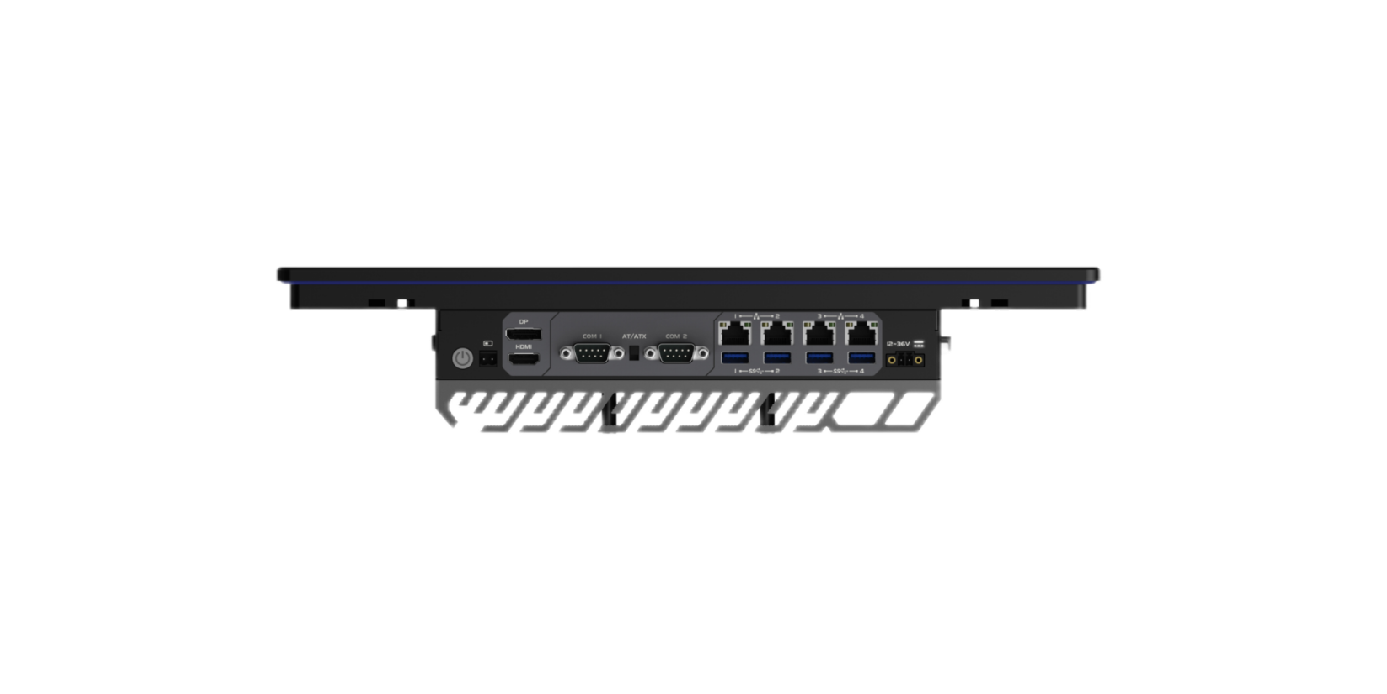

The OVS-156C5-ADL5-8FB-01 model includes an Intel Core i5-1235U with ten cores and twelve threads. The DDR5-4800 SO-DIMM memory and M.2 NVMe SSD storage must be selected separately in the configurator; they are not included in the chassis price. It offers four Gigabit Ethernet ports, four USB 3.2 ports, and four COM ports. Two serial interfaces can be configured as RS-232, RS-422, or RS-485; two isolated RS-232 ports are available as an option. The HDMI 1.4b and DisplayPort 1.2 outputs allow connection to an external display.

Expansion, power supply, and environment

M.2 slots are provided for optional Wi-Fi 6 and 4G/5G modules. The 12 to 36 VDC input includes protection against reverse polarity, short circuits, overvoltage, and overcurrent. The system is documented to operate from 0 to 50 °C. JWIPC notably cites smart factories, wind power, photovoltaics, and environmental monitoring among the applications of the range.

Highlights

• 15.6-inch Full HD capacitive touchscreen
• Intel Core i5-1235U; DDR5 memory and NVMe SSD to be configured separately
• Four Gigabit Ethernet ports and four USB 3.2 ports
• Four serial interfaces depending on the documented configuration
• IP65 front panel and wide-range 12 to 36 VDC power supply
• Fanless and modular open frame architecture
