Description
Description
LoraWan Network

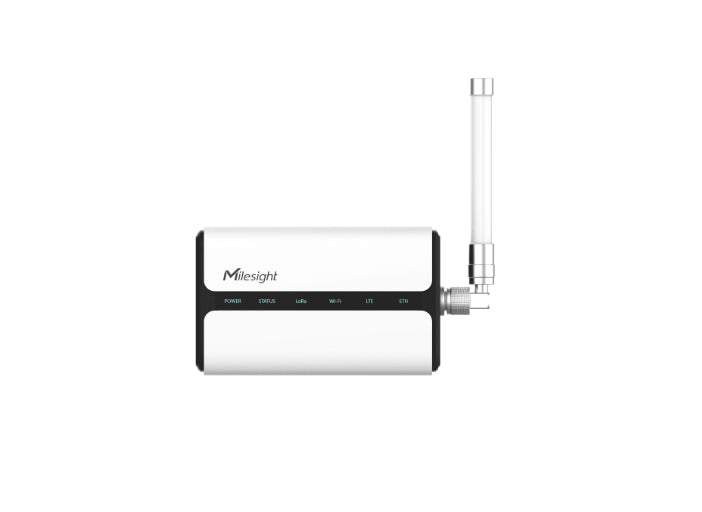

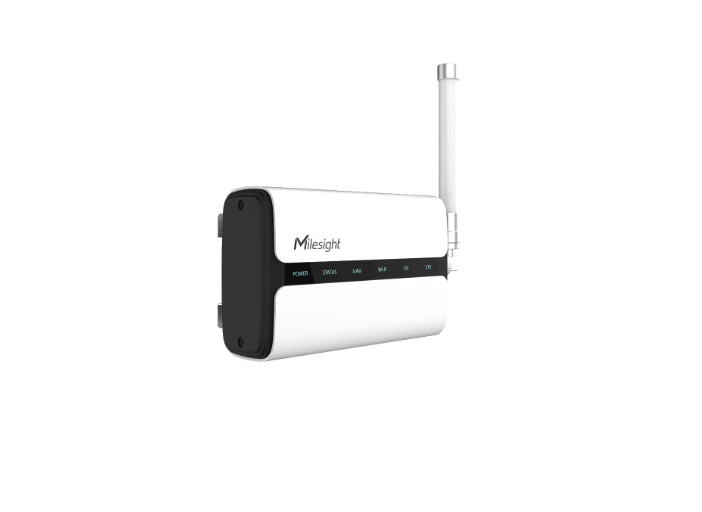

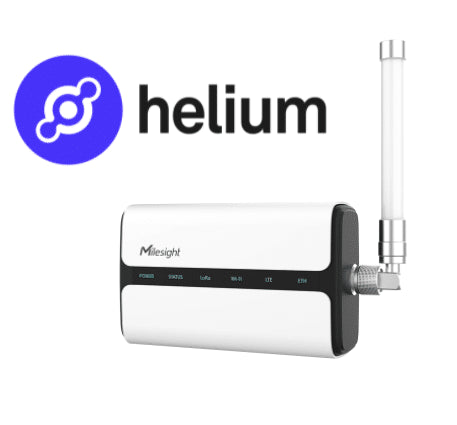

UG65 is a robust 8-channel indoor LoRaWAN® gateway. Adopting LoRa SX1302 chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes.
And Hotspot Miner
Compatible with Helium LongFi technology; a technology that benefits from all the benefits and functionalities of the LoRaWAN® network while adding the possibility for gateway owners to earn HNT (Helium Network Token) tokens
The UG65 can also work as a normal gateway with support for traditional network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
Smart Building
The UG65 has a range of up to 15 km and can cover around 2 km in an urbanized environment, which is ideal for smart offices, smart buildings and many other indoor applications.
Features
| Hardware system | ||
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 | |
| Memory | 2 GB DDR4 RAM | |
| Flash | 32 GB eMMC | |
| Encryption chip | ATECC608 | |
| LoRaWAN® | ||
| Antenna | UG65: 2 × Internal Antennas + 1 × 50 Ω External N-Female Connector UG67: 2 × Internal Antennas + 2 × 50 Ω External N-Female Connectors |
|
| Channel | 8 (Half/Full-Duplex) | |
| Frequency band | RU864/IN865/EU868/US915/AU915/KR920/AS923/AS923-2 | |
| Sensitivity | -140dBm Sensitivity @292bps | |
| Output power | 27 dBm max. | |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C | |
| Ethernet interface | ||
| Port | 1 × RJ45 (PoE PD supported) | |
| Physical layer | 10/100/1000 Base-T (IEEE 802.3) | |
| Data rate | 10/100/1000 Mbps (Auto sensing) | |
| Interface | Auto MDI/MDIX | |
| Fashion | Full or Half Duplex (Auto-Sensing) | |
| Wi-Fi interface | ||
| Antenna | Internal antenna | |
| Standards | IEEE 802.11 b/g/n, 2.4 GHz | |
| Fashion | AP or Client mode | |
| Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption | |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
|
| Cellular Interface (UG65: Optional; UG67 Default) | ||
| Antenna | Internal antenna | |
| SIM slot | 1 (mini SIM-2FF) | |
| Others | ||
| Reset button | 1 × RST | |
| Console port | 1 × Type-C | |
| LED indicator | UG65: 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH UG67: 1 × SYS, 1 × LoRa, 1 × LTE |
|
| Integrated | Watchdog, RTC, Timer | |
| Software | ||
| Network protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
|
| VPN tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN | |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding Recon/URL Filter | |
| Management | Web, CLI, SMS, On-demand dial-up, DeviceHub, Milesight IoT Cloud | |
| Reliability | WAN failover | |
| Application | Python SDK, Node-RED | |
| Power supply | ||
| Power input | UG65: 1 × 802.3 af PoE and DC Jack connector for 9-24 VDC power supply UG67: 1 × 802.3 af PoE & 12 VDC input with M12 connector |
|
| Physical characteristics | ||
| Protection against entry | UG65: IP65 UG67: IP67 | |
| Dimensions | UG65: 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in) UG67: 250 x 172 x 92 mm (9.84 x 6.77 x 3.62 in) |
|
| Facility | Wall or pole mounting | |
| Environmental | ||
| Operating temperature | -40°C to +70°C (-40°F to +158°F) Reduction in cellular performance above 60°C |
|
| Storage temperature | -40°C to +85°C (-40°F to +185°F) | |
| Ethernet isolation | 1.5kV RMS | |
| Relative humidity | 0% to 95% (non-condensing) at 25°C/77°F | |
Specifications
Specifications
-
Connectivity4G - 3G - 2G
-
Number of RJ45 port(s)1
-
InterfacesEthernet, Wireless, Micro USB
-
Number of SIM slot(s)1
