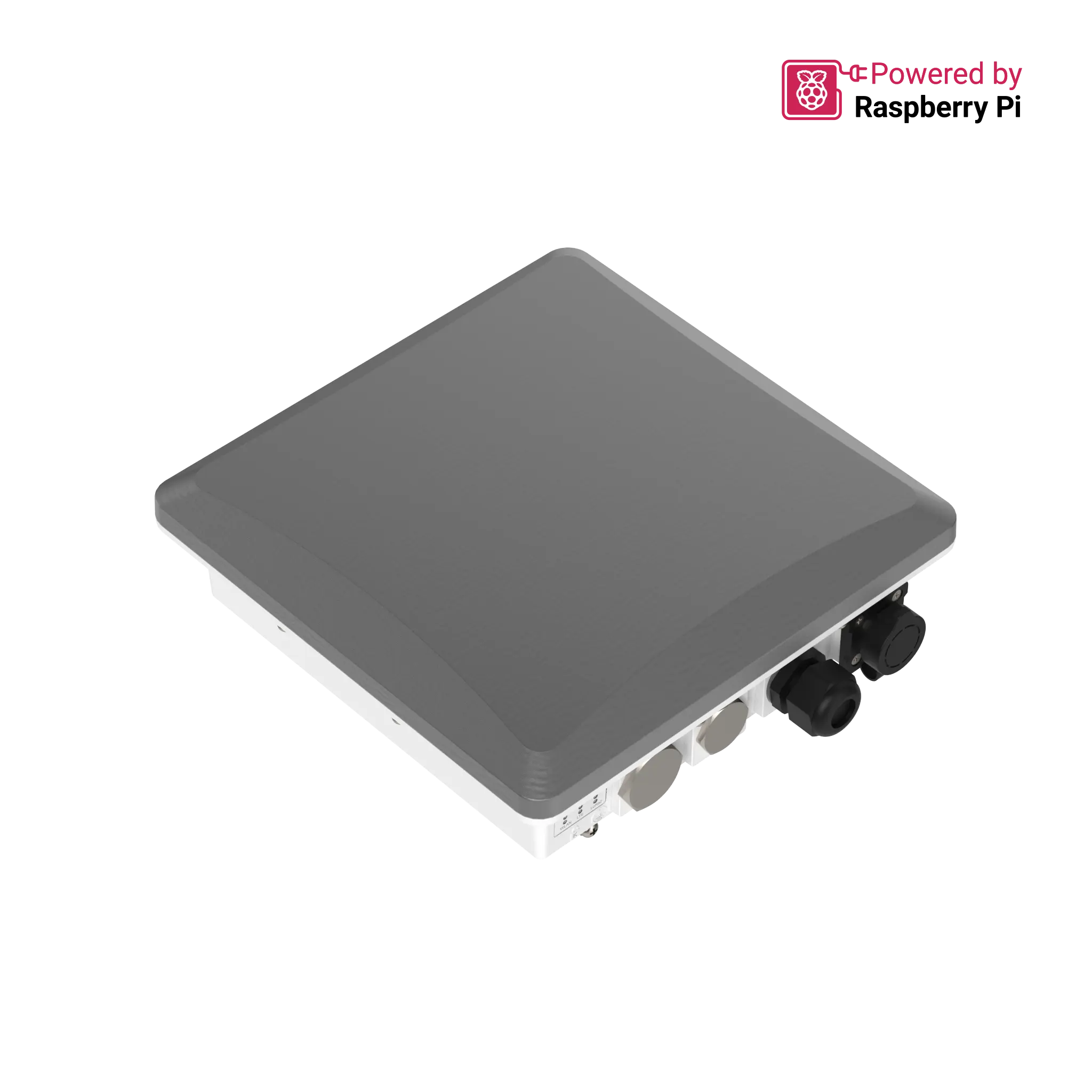

RAK7393C 16-Channel Outdoor Industrial Gateway with LTE

The RAK7393C WisGate Connect Outdoor is an industrial IoT gateway based on the Raspberry Pi Compute Module 4 and compatible with CM5. This product sheet specifically refers to manufacturer reference 715222: a 16-channel LoRaWAN version for EU868, equipped with an LTE Cat 4 EG95-E modem for the EMEA region and supplied with a European plug.

16-Channel LoRaWAN Architecture

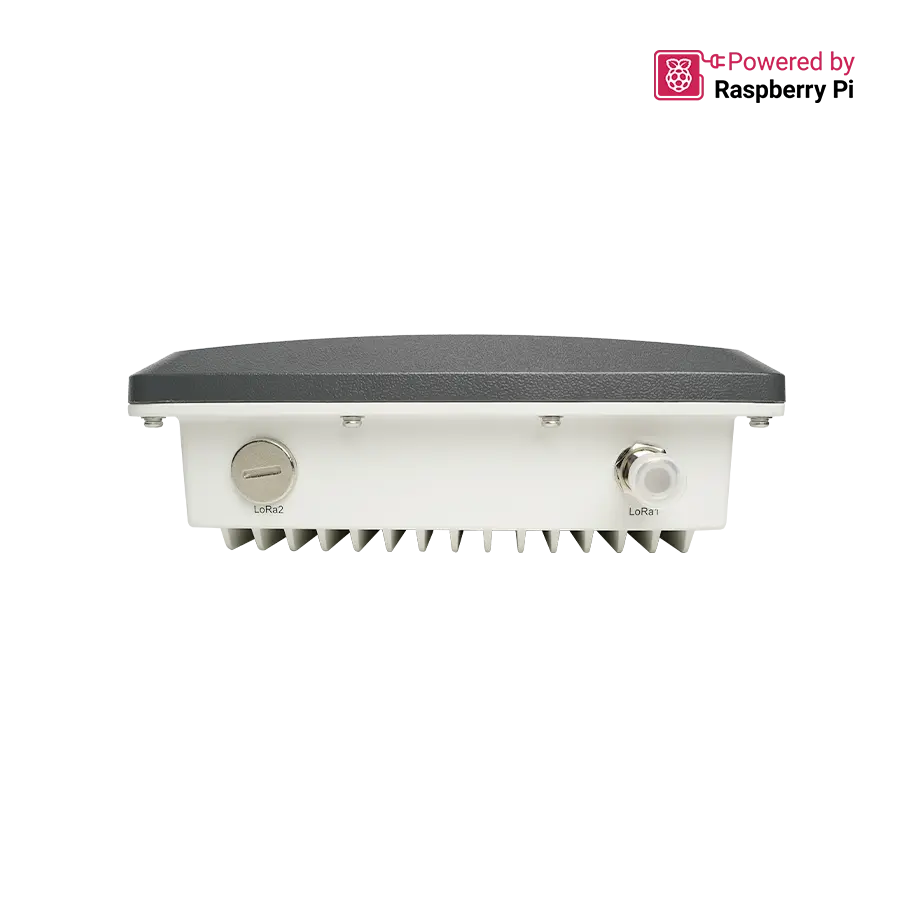

The 16-channel configuration uses two concentrators and is suitable for high-traffic outdoor LoRaWAN deployments. The enclosure has two LoRa antenna connections identified as LoRa1 and LoRa2.

Scalable Industrial Gateway

Three Mini PCIe slots allow for the integration of various radio functions, including LoRa, LTE, or mioty. The platform features three nanoSIM slots, one of which is externally accessible, as well as an SD card slot, USB-C console and programming ports, and an ATECC608 security chip.

Power Supply and Outdoor Installation

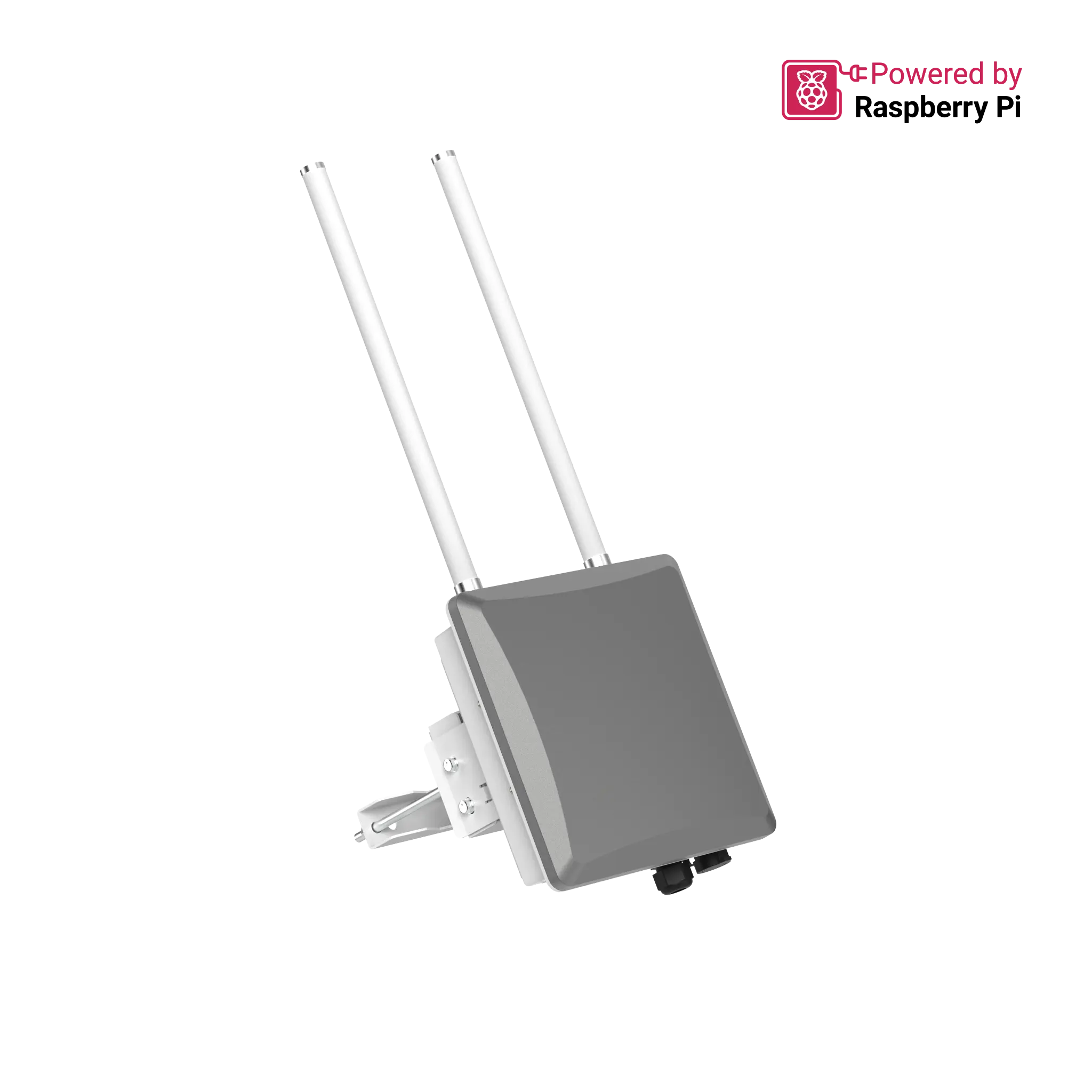

The IP67/NEMA 6 certified enclosure is designed for wall or pole mounting. Power can be supplied via IEEE 802.3at PoE or a 9 to 36 VDC input compatible with a suitable solar installation.

EMEA Cellular Version

Reference 715222 integrates an LTE Cat 4 EG95-E modem for Europe, the Middle East, and Africa. It is intended for sites requiring cellular backhaul in addition to the Ethernet network.

Important Information about Antennas

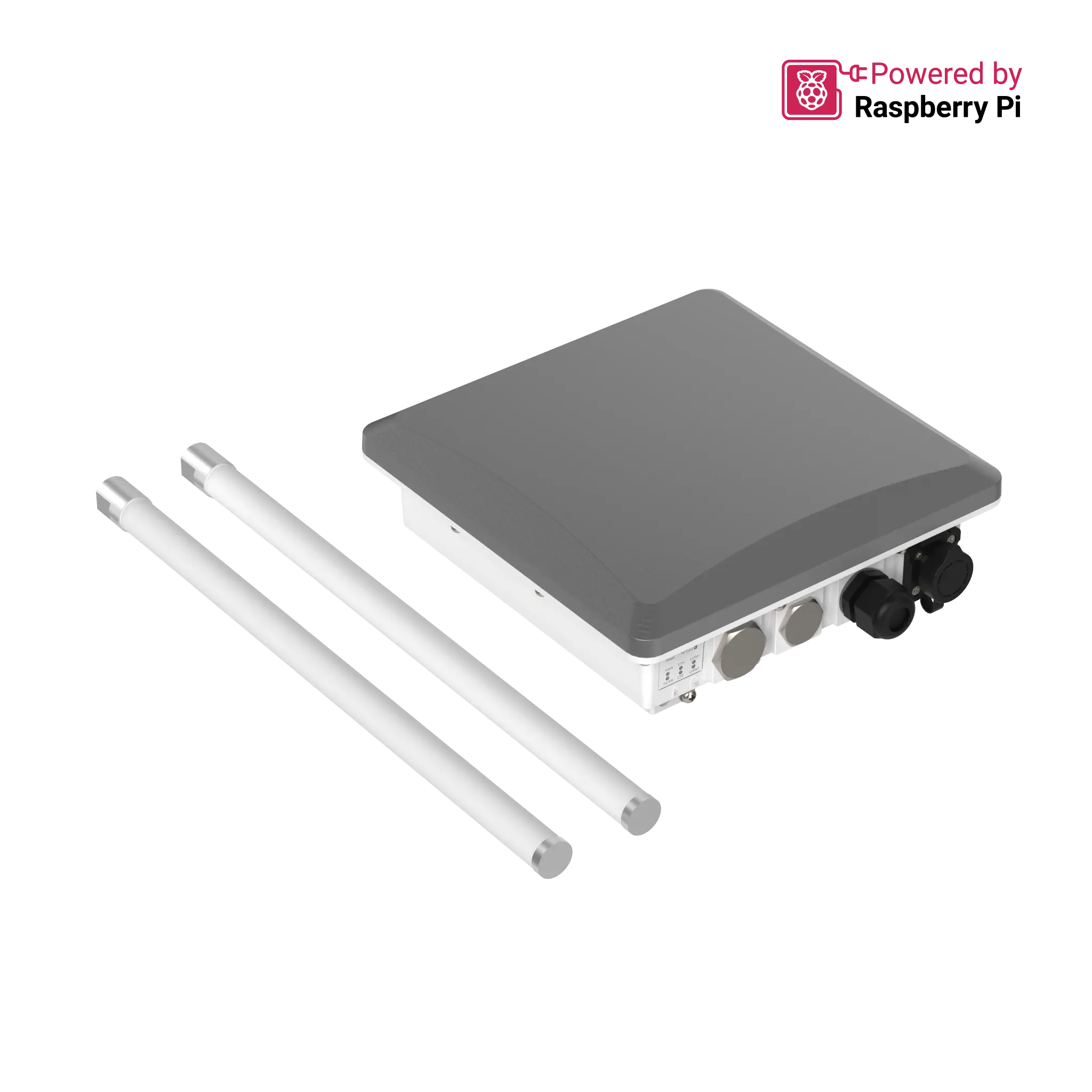

Manufacturer visuals may show two LoRa antennas. RAK specifies that antennas are not included and must be ordered separately; the 16-channel version requires two suitable antennas.

Antennas and Package Contents

Important — LoRa antennas not included: The 16-channel reference 715222 requires two compatible EU868 LoRa antennas, to be purchased separately. The antennas visible in some media are for illustrative purposes only and are not included in the package.
