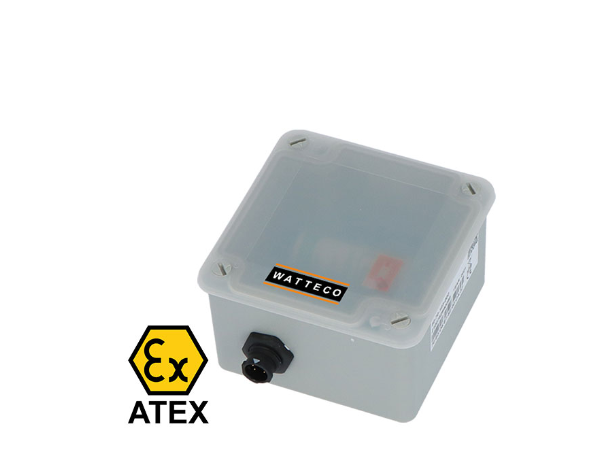

Pulse SENS'O ATEX - LoRaWAN Pulse Sensor Zone 1 - Watteco

Pulse SENS’O ATEX - LoRaWAN Pulse Sensor Zone 1 - Watteco

The Pulse SENS’O ATEX Watteco is a LoRaWAN pulse sensor for remote meter reading in ATEX Zone 1 environments. It allows existing meters to be connected to an IoT infrastructure without replacing the measurement equipment.

Pulse remote reading

The sensor has 3 pulse or state inputs. It can be used with gas, water, heat or electricity meters with a compatible pulse output. It is not a measurement center: it collects pulses from an existing meter.

LoRaWAN transmission

The Pulse SENS’O ATEX communicates via LoRaWAN in Class A on the 868 MHz band. Data can be transmitted to a LoRaWAN gateway and a compatible IoT platform to report indexes, monitor consumption, or generate alerts.

Installation and autonomy

The product is ATEX Zone 1 certified and operates with a SAFT LS17500 3.6 V lithium battery. The casing is rated IP55 or IP68 depending on the version. It is designed for environments requiring reliable remote meter reading in regulated zones.

Applications

It is suitable for remote reading of gas, water, heat or electricity meters, industrial sites, technical installations, distribution networks and ATEX Zone 1 environments.

Strengths

• LoRaWAN ATEX Zone 1 pulse sensor
• 3 pulse or state inputs
• Compatible with gas, water, heat and electricity meters
• LoRaWAN Class A communication at 868 MHz
• SAFT LS17500 3.6 V lithium battery
• IP55/IP68 casing depending on version
