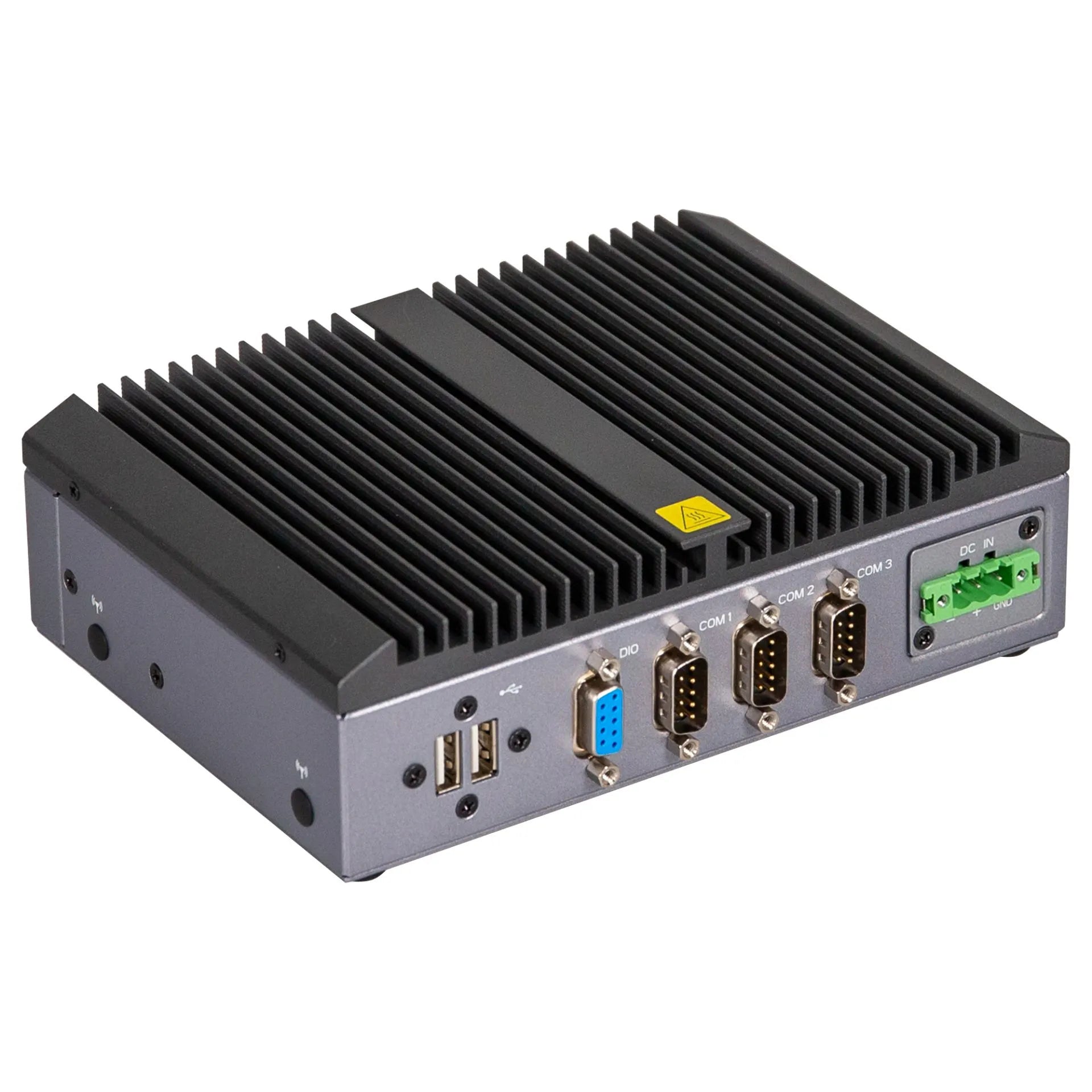

QBiX-Pro-N150B-A1 - N150 Fanless Industrial PC - GIGAIPC

Fanless Intel N150 Industrial PC

The GIGAIPC QP-N150B-A1, referenced as QBiX-Pro-N150B-A1 in Shopify, is a compact fanless industrial system based on the Intel N150 processor. Its 178 × 125 × 52.7 mm form factor combines DDR5 memory, dual 4K display, and industrial connectivity.

Intel N150 Platform and Dual Display

The Intel N150 processor features four cores and reaches 3.60 GHz. The system supports a DDR5-4800 SO-DIMM module up to 16 GB. Two HDMI 2.0 outputs drive two independent displays up to 4096 × 2160 at 60 Hz.

Storage and Connectivity

One M.2 2280 M-Key slot in PCIe Gen3 x2 accommodates main storage. A 2.5-inch SATA 6 Gbit/s bay completes the integration possibilities. One M.2 2230 E-Key slot and a full-length Mini PCIe with SIM slot are provided for network extensions.

Industrial Interfaces

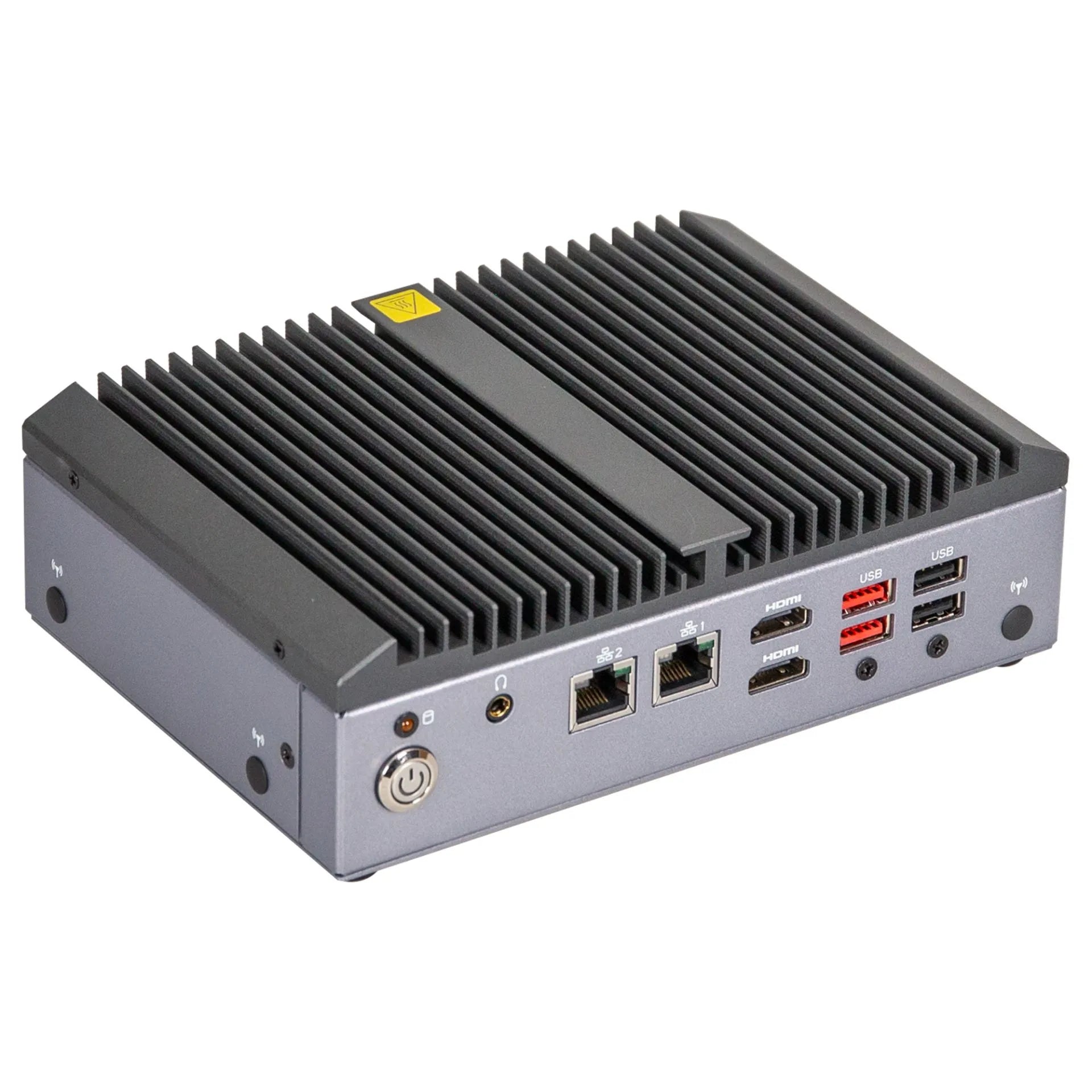

Two 2.5 Gbit/s Ethernet ports, six USB ports, three COM ports, and an 8-bit GPIO allow the system to be connected to networks, peripherals, and field equipment. TPM 2.0 is integrated. The power supply accepts a wide input range of 12 to 36 VDC, and the documented operating temperature is 0 °C to 50 °C.

Highlights

• Compact fanless design
• Intel N150, quad-core up to 3.60 GHz
• DDR5-4800 up to 16 GB
• Two HDMI 2.0 up to 4K at 60 Hz
• Two 2.5 Gbit/s LAN
• M.2 2280 PCIe Gen3 x2 and 2.5-inch SATA bay
• Three COM ports, 8-bit GPIO and TPM 2.0
