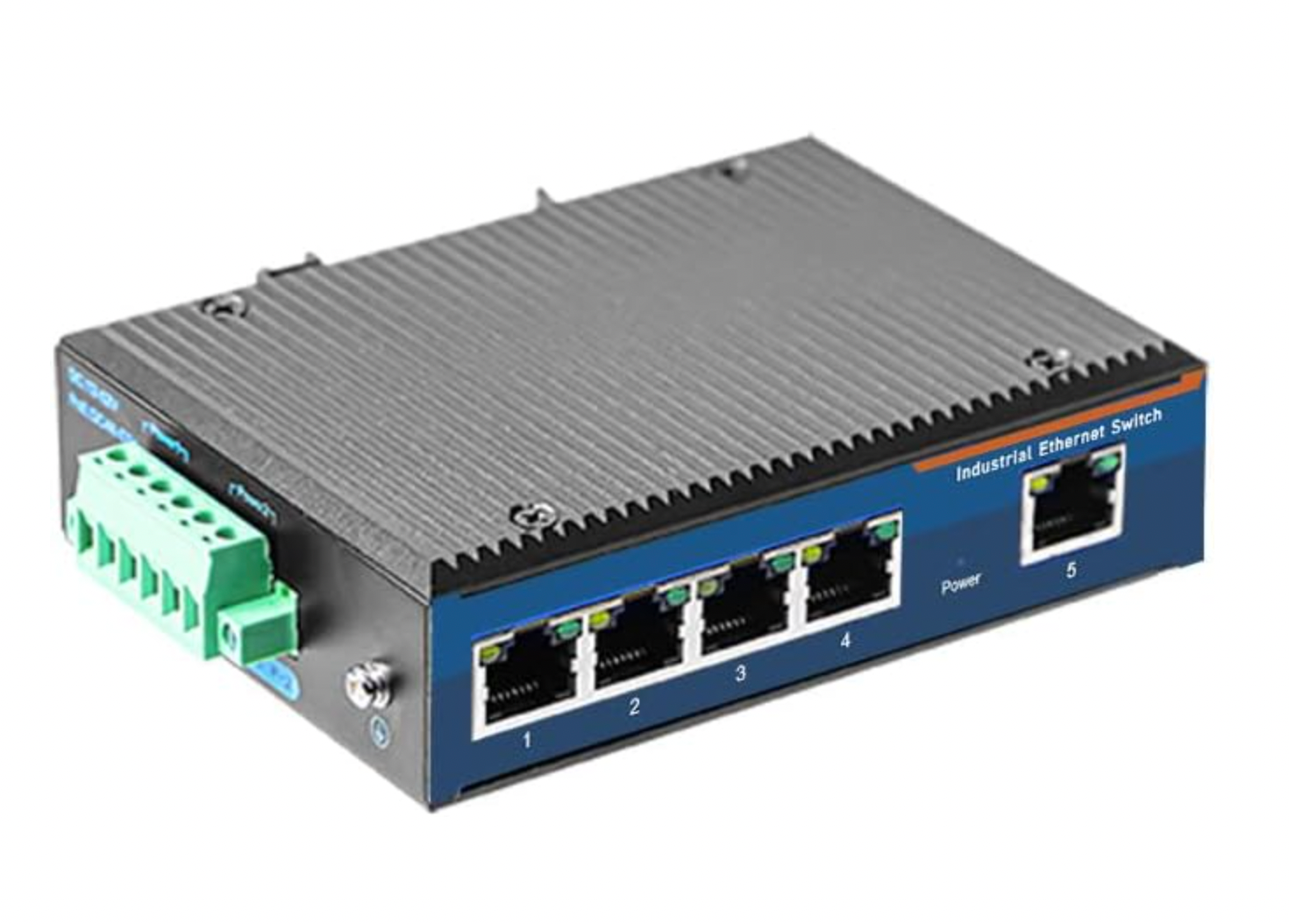

Industrial SWITCH 5 ports Gigabit PUSR USR-ISG005

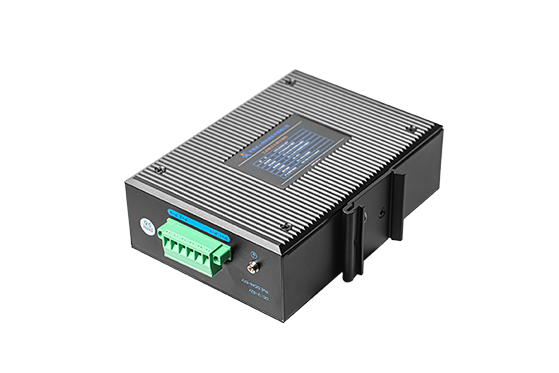

The PUSR USR‑ISG005 is a 5-port Gigabit (10/100/1000 Base-T(X)) unmanaged industrial switch designed to withstand extreme environments. Its fanless IP40 metal housing supports a temperature range of -40 °C to +85 °C and operates with a 12-52 V DC power supply protected against reverse polarity and surges. With a 10 Gb/s backplane, a 1 K MAC table and a latency of < 5 µs, it guarantees full-gigabit wired speed while consuming < 3 W. The compact size (130 × 95 × 33.5 mm) and the 35 mm DIN rail mounting facilitate its integration into cabinets and machines.

Target applications

Ethernet networks for machine tools and robotic cells

PLCs in energy, oil & gas, water treatment sites

NVR and IP cameras in parking lots, tunnels, bus stations

LoRaWAN IoT gateways or 4G-5G routers seeking a reliable Gigabit core

Signaling cabinets, charging stations, smart grid

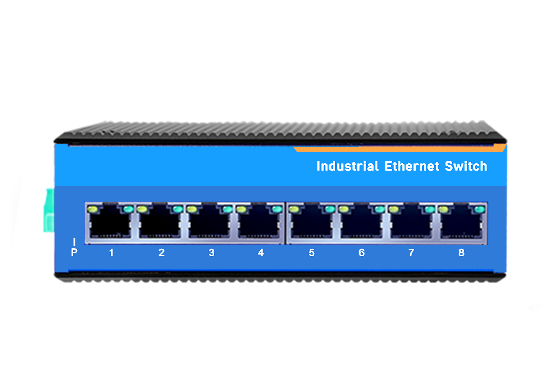

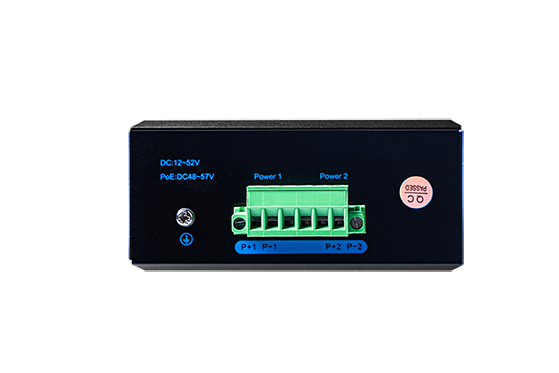

Reference in 8-port version available: Industrial SWITCH 8 Gigabit ports PUSR USR-ISG008

Reference in 16-port version available: Industrial SWITCH 16 Gigabit ports - Din-rail - PUSR USR-ISG016
