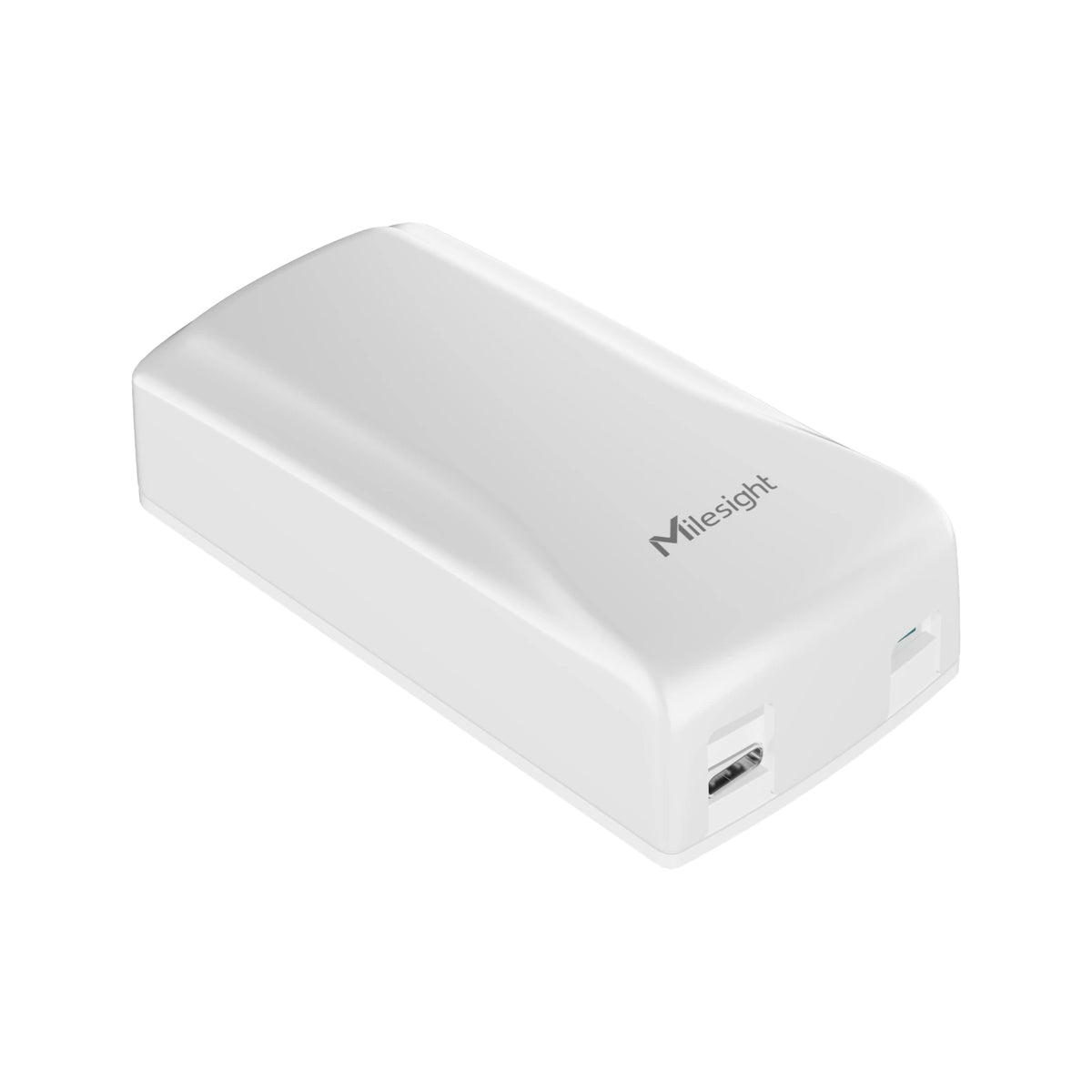

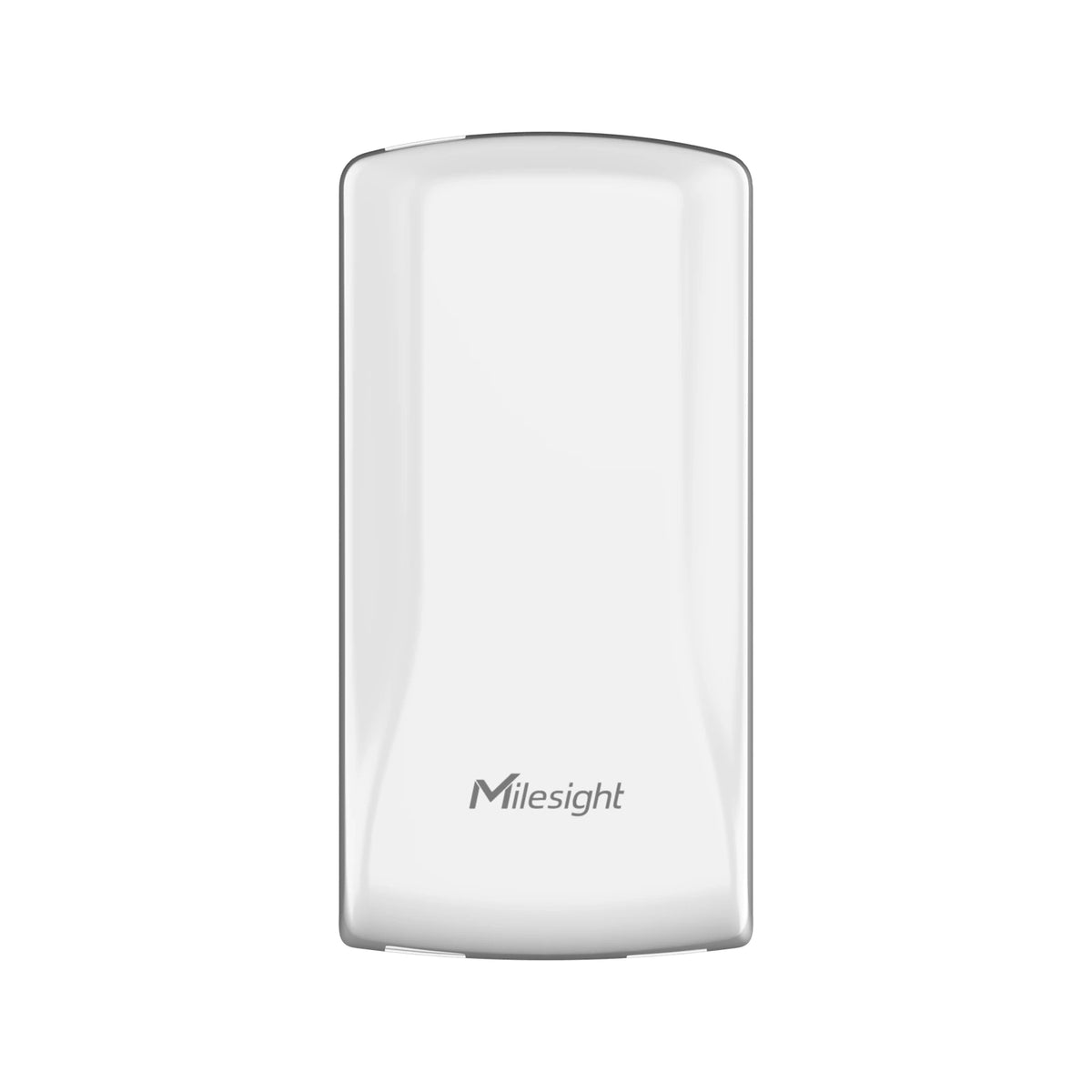

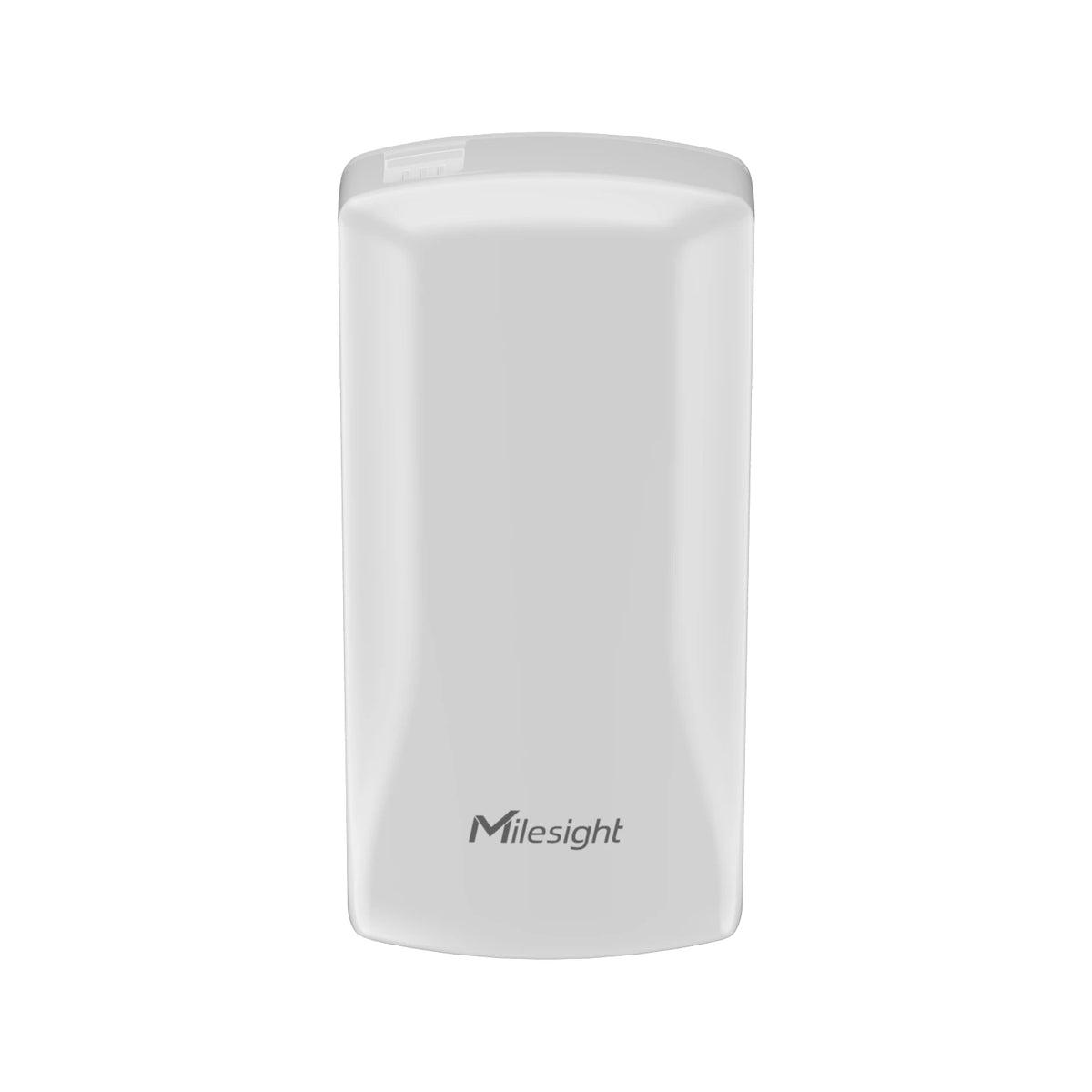

UC701 - Smart Air Conditioner Controller - Milesight

Control air conditioning via infrared

The UC701 transmits infrared commands to an air conditioner equipped with a remote control. Its code library and learning function make it easy to integrate air conditioning units into offices, shops, and shared spaces. Wireless control of the air conditioner combines local schedules with remote commands transmitted via LoRaWAN. The multidirectional IR transmitter allows the controller to be positioned anywhere in the room depending on the installation.

Monitor conditions and automate schedules

The built-in sensors measure temperature and humidity to provide data for building management. Local rules manage operating and shut-off times as well as setpoint adjustments. Bluetooth configuration simplifies on-site interventions. The UC701 also communicates with the Milesight WT401 thermostat via Bluetooth for projects that combine these devices.

Tailor the installation to each space

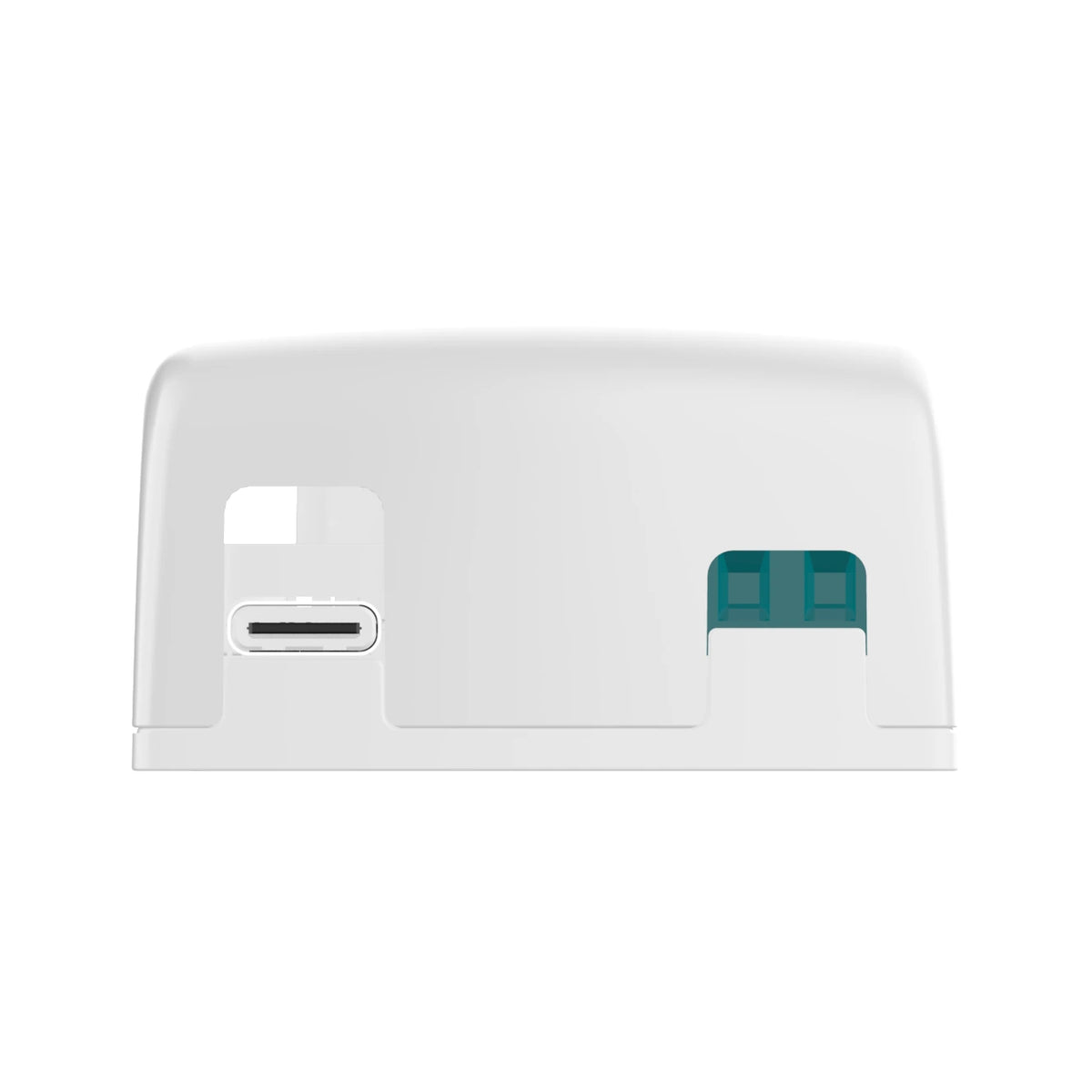

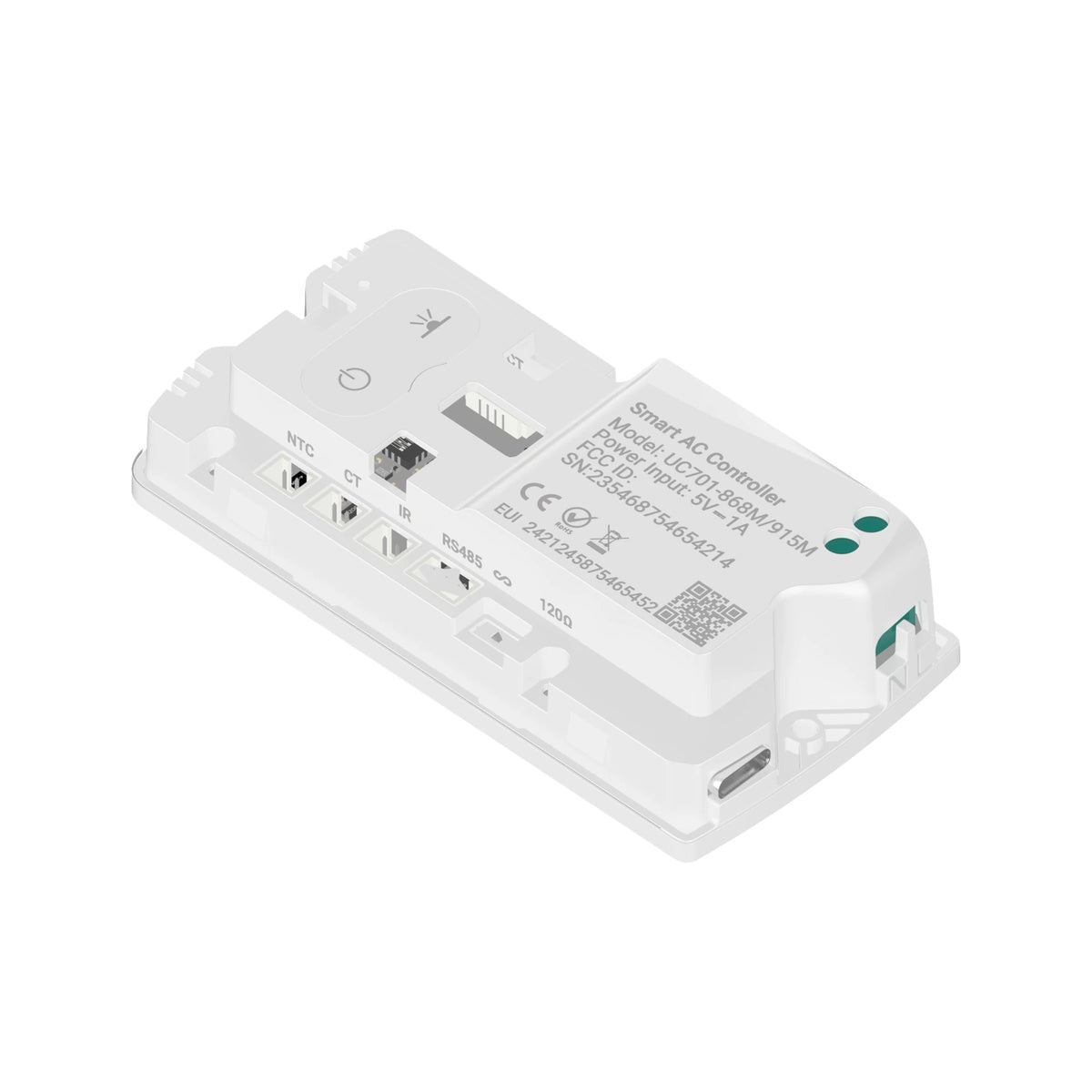

The controller is powered by 5 V DC via USB-C and can accept an NTC probe, a current transformer, or a remote infrared transmitter through its dedicated interfaces. These items are optional accessories, separate from the controller. The radio version is selected based on the site's LoRaWAN network: specify your region when ordering. The positioning of the IR transmitter and the choice of accessories guide the room-by-room deployment.
